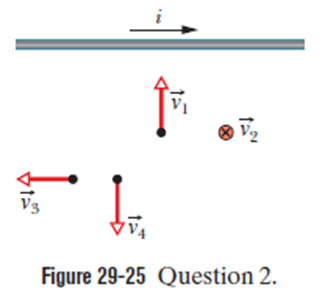

Figure representing a snapshot of the velocity vectors of four electrons near a wire carrying currenti is given.

$\left|{\mathrm{v}}_1\right|=\left|{\mathrm{v}}_2\right|=\left|{\mathrm{v}}_3\right|=\left|{\mathrm{v}}_4\right|=\mathrm{v}$

Find the magnetic field on each electron using the formula for the magnetic field at a perpendicular distance from the wire. From this, find the magnetic forces acting on each electron. Comparing them, findthe ranking of electrons according to the magnitude of the magnetic forces on them due to current i.

Right Hand Rule states that if we arrange our thumb, forefinger, and middle finger of the right-hand perpendicular to each other, then the thumb points towards the direction of the motion of the conductor relative to the magnetic field, and the forefinger points towards the direction of the magnetic field and the middle finger points towards the direction of the induced current.

Formulae are as follow:

$\mathrm{B}=\frac{{\mathrm{渭}}_0\mathrm{i}}{2\mathrm{蟺搁}}$

role="math" localid="1663331285544" $\mathrm{F}=\mathrm{qvB}\sin 蠒$

Where, B is magnetic field, R is radius, iis current,饾泹is permeability,F is magnetic force, v is velocity, q is charge of particle.

Magnetic field at a distance R from a wire carrying current i is given by,

$\mathrm{B}=\frac{{\mathrm{渭}}_0\mathrm{i}}{2\mathrm{蟺搁}}$

Let electron 1 and 2 be at distance r and electron 3 and 4 be at distance R from the wire. Then, the magnetic fields experienced by the given electrons are,

${\mathrm{B}}_1=\frac{{\mathrm{渭}}_0\mathrm{i}}{2\mathrm{蟺谤}},{\mathrm{B}}_2=\frac{{\mathrm{渭}}_0\mathrm{i}}{2\mathrm{蟺谤}},{\mathrm{B}}_3=\frac{{\mathrm{渭}}_0\mathrm{i}}{2\mathrm{蟺搁}},{\mathrm{B}}_4=\frac{{\mathrm{渭}}_0\mathrm{i}}{2\mathrm{蟺搁}}$

Since, R > r,

${\mathrm{B}}_3={\mathrm{B}}_4<{\mathrm{B}}_1={\mathrm{B}}_2$

From right hand rule, interpret that magnetic field is directing into the page.

The magnetic force on electron is given by,

$\mathrm{F}=\mathrm{evB}\mathrm{蝉颈苍蠒}$

From right hand rule, interpret that magnetic field on each electron is directed into the page.

Hence, the magnetic forces on the given electrons are,

${\mathrm{F}}_1={\mathrm{evB}}_1\sin 90掳=\mathrm{ev}\frac{{\mathrm{渭}}_0\mathrm{i}}{2\mathrm{蟺谤}}$, ${\mathrm{F}}_2={\mathrm{evB}}_2\sin 180掳=0$, ${\mathrm{F}}_3={\mathrm{evB}}_3\sin 90掳=\mathrm{ev}\frac{{\mathrm{渭}}_0\mathrm{i}}{2\mathrm{蟺搁}}$

${\mathrm{F}}_4={\mathrm{evB}}_4\sin 90掳=\mathrm{ev}\frac{{\mathrm{渭}}_0\mathrm{i}}{2\mathrm{蟺搁}}$

Hence, the ranking of electrons according to the magnitude of the magnetic forces on them due to currenti is,

${\mathrm{F}}_1>{\mathrm{F}}_3={\mathrm{F}}_4>{\mathrm{F}}_2$

Therefore, magnetic force on the particle due to currenti in the wire depends on the magnetic field, its distance from the wire, and the angle between its velocity and applied magnetic field.
