Is positive or negative work done by a constant force f→on a particle during a straight-line displacement d→if (a) the angle between f→andd→is30°; (b) the angle is 100°; (c) localid="1657168288688" f→=2i^-3j^and d→=-4i^?

Short Answer

Expert verified
  1. The work done on the particle if the angle between F→and d→is 30°is positive.
  2. The work done on the particle if the angle between role="math" localid="1657167506643" F→and d→is 100°is negative.
  3. The work done on the particle is negative if force is role="math" localid="1657167547179" F→=2i^-3j^=and displacement is d→=-4i^.

Step by step solution

01

The given data

The work is done by a constant force on a particle during a straight-line displacement that is in one direction.

02

Understanding the concept of the work done

Work done is the dot product of force and displacement in the direction of the applied force. Using this concept of the work done, the value work for each case can be calculated using the given formula.

Formula:

The work done by a constant force on a body,

W=F→.d→=¹ó»å³¦´Ç²õθ (1)

03

a) Calculation of the nature of work done if the angle is 300

When the angle between force and displacement is then the work done on the particle can be given using equation (1) as follows:

W=Fdcos(30°)=32Fd

So, the work done is positive.

04

b) Calculation of the nature of work done if the angle is 100o

When the angle between force and displacement is , then the work done using equation (2) is given as:

W=Fdcos(100°)=-Fdcos10°

So, the work done is negative.

05

c) Calculation of the work done

Now when force is 2i^-3j^and displacement is localid="1657168357089" -4i^, , then the work done using equation (1) is given as:

W=2i^-3j^.-4i^=-8

So, the work done is negative.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A spring and block are in the arrangement of Fig. 7-10.When the block is pulled out to x=4.0cm, we must apply a force of magnitude 360N to hold it there.We pull the block to x=11cmand then release it. How much work does the spring do on the block as the block moves from xi=+5.0cmto (a)x=+3.0cm, (b) x=−3.0 cm, (c)x=−5.0 cm ,and (d)x=−9.0 cm ?

At, t = 0 force F→=(-5.00i^+5.00j^+4.00k^)Nbegins to act on a 2.00 kg particle with an initial speed of 4.00 m / s . What is the particle’s speed when its displacement from the initial point is role="math" localid="1657949233150" d→=(2.00i^+2.00j^+7.00k^)m?

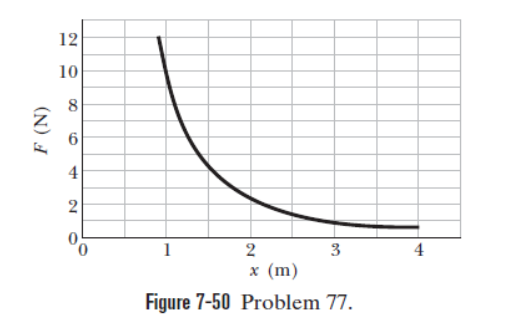

As a particle moves along an x axis, a force in the positive direction of the axis acts on it. Figure 7-50shows the magnitude Fof the force versus position x of the particle. The curve is given by F=a/x2, with a=9.0N.m2. Find the work done on the particle by the force as the particle moves fromx=1.0mto x=3.0mby (a) estimating the work from the graph and (b) integrating the force function.

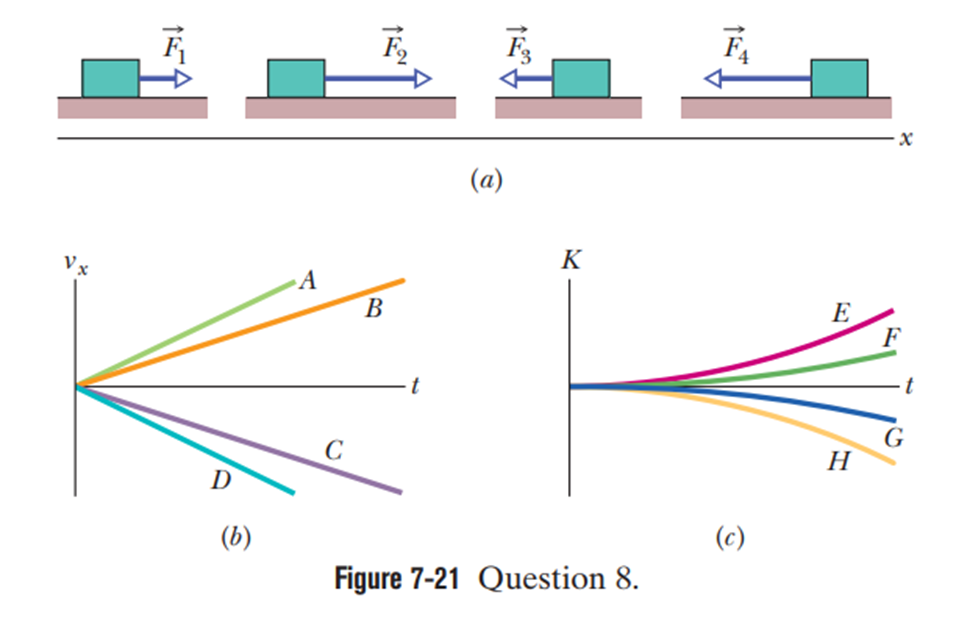

Figure 7-21ashows four situations in which a horizontal force acts on the same block, which is initially at rest. The force magnitudes are F2=F4=2f1=2F3. The horizontal component vXof the block’s velocity is shown in figure 7-21bfor the four situations. (a) Which plot in figure 7-21b best corresponds to which force in fig. 7-21a? (b) Which plot in figure 7-21c (for kinetic energy K versus time t) best corresponds to which plot in fig. 7-21b ?

A horse pulls a cart with a force of 40lbat an angle of30°above the horizontal and moves along at a speed of6.0mi/h. (a) How much work does the force do in10min? (b) What is the average power (in horsepower) of the force?
