Chapter 35: Q88P (page 1079)

Light of wavelength 700.0 nm is sent along a route of length 2000 nm. The route is then filled with a medium having an index of refraction of 1.400. In degrees, by how much does the medium phase-shift the light? Give (a) the full shift and (b) the equivalent shift has a value less than 360掳.

Short Answer

Expert verified

(a) The full shift is 411.4掳.

(b) The equivalent shift is 51.4掳.

Step by step solution

01

Calculation the full phase-shift of the light

(a)

The difference in wavelengths, with and without the n=1.4material, is found using the equation shown below:

螖N=n-11位=1.143

The result is equal to phase shift of 1.143360掳=411.4掳

Hence, the full shift is 411.4掳.

02

Calculation the equivalent phase-shift of the light

(b)

The equivalent shift is calculated as:

411.4掳-360掳=51.4掳.

Hence, the equivalent shift is 51.4掳.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter


Does the spacing between fringes in a two-slit interference pattern increase, decrease, or stay the same if

(a) the slit separation is increased,

(b) the color of the light is switched from red to blue, and

(c) the whole apparatus is submerged in cooking sherry?

(d) If the slits are illuminated with white light, then at any side maximum, does the blue component or the red component peak closer to the central maximum?

If you move from one bright fringe in a two-slit interference pattern to the next one farther out,

(a) does the path length difference 鈭�Lincrease or decrease and

(b) by how much does it change, in wavelengths 位 ?

A plane wave of monochromatic light is incident normally on a uniform thin film of oil that covers a glass plate. The wavelength of the source can be varied continuously. Fully destructive interference of the reflected light is observed for wavelengths of 500nmand 700nmand for no wavelengths in between. If the index of refraction of the oil is 1.30and that of the glass is 1.50, find the thickness of the oil film.

In the double-slit experiment of Fig. 35-10, the viewing screen is at distance D=4.00m, point P lies at distance role="math" localid="1663143982922" y=20.5cmfrom the center of the pattern, the slit separation d is 4.50mm, and the wavelength 位is 580 nm. (a) Determine where point P is in the interference pattern by giving the maximum or minimum on which it lies, or the maximum and minimum between which it lies. (b) What is the ratio of the intensitylPat point P to the intensitylcen at the centerof the pattern?

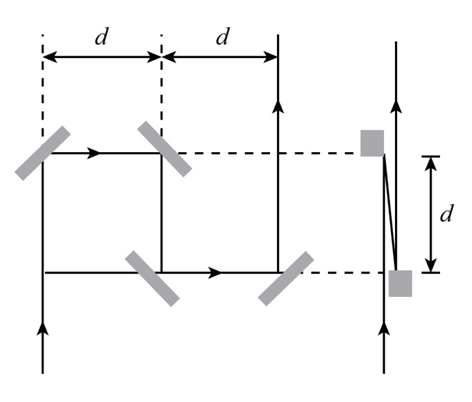

Figure 35-22 shows two light rays that are initially exactly in phase and that reflect from several glass surfaces. Neglect the slight slant in the path of the light inthe second arrangement.

(a) What is the path length difference of the rays?

In wavelengths位,

(b) what should that path length difference equal if the rays are to be exactly out of phase when they emerge, and

(c) what is the smallest value of that will allow that final phase difference?
See all solutions
