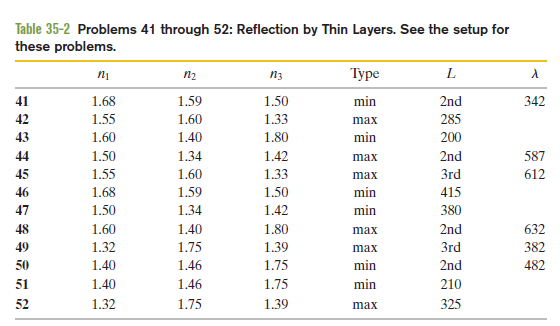

Reflection by thin layers. In Fig. 35-42, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) The waves of rays r1 and r2 interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35- 2 refers to the indexes of refraction n1,n2, andlocalid="1663665154700" n3, the type of interference, the thin-layer thickness L in nanometres, and the wavelength λ in nanometres of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

Short Answer

Expert verified

The 2nd least thickness of the thin layer 248 nm.

Step by step solution

01

Interference in thin films:

Light interference is the cause of the vivid colors that thin oil on water and soap bubbles reflect. These vivid hues can be seen because of the light reflection from the thin film's front and rear surfaces' constructive interference.

For a perpendicular incident beam, the maximum intensity of light from the thin film satisfies the condition:

2L=m+12λn2 â¶Ä‰â¶Ä‰m=0, 1, 2,...(Maxima—bright film in the air)

2L=mλn2 â¶Ä‰â¶Ä‰m=1, 2, 3,.. (Minima)

Where, λ is the wavelength of the light in air, L is its thickness, and n2 is the film’s refractive index.

02

Determine the 2nd least thickness of the thin layer:

Here, in this case, light travels in a medium with n1=1.40 and incident on the thin layer whose refractive index is n2=1.46 and the reflected light has 180° phase change as the light is reflected off the denser medium. And then, the refracted light gets reflected of the back surface n3=1.75 while traveling through the film. This results in 180° phase change. The total phase difference between r1 and r2 is still zero. As a result, the condition for destructive interference or minimum intensity is

2L=m+12λn2 (Destructive)

The 2nd least (m=1) thickness of the thin layer is

L=1+12482 nm2(1.46)=248 nm

Hence, the 2nd least thickness of the thin layer is248 nm .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Suppose that the two waves in Fig. 35-4 have a wavelength λ=500nmin air. What multiple of λgives their phase difference when they emerge if (a) n1=1.50, n2=16and L=8.50μm; (b) n1=1.62, n2=1.72, and L=8.50μm; and (c) n1=1.59, n2=1.79, and L=3.25μm? (d) Suppose that in each of these three situations, the waves arrive at a common point (with the same amplitude) after emerging. Rank the situations according to the brightness the waves produce at the common point.

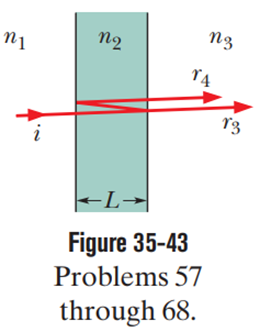

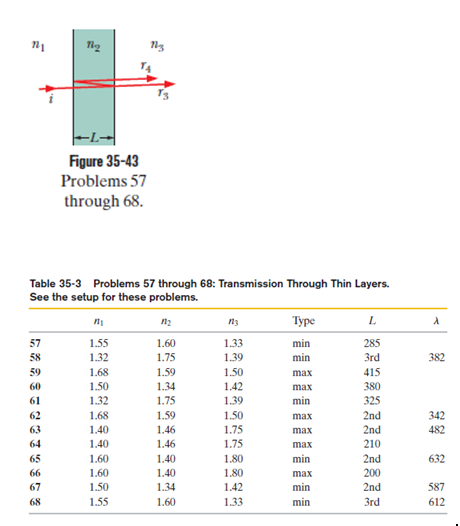

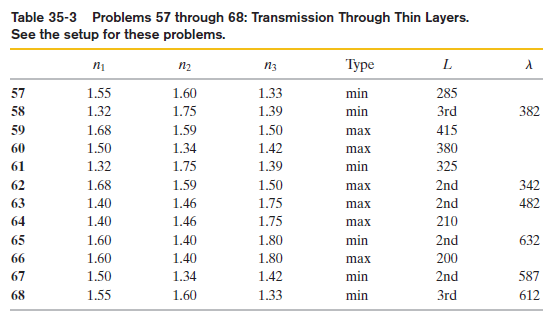

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as ray r3(the light does not reflect inside material 2) and r4(the light reflects twice inside material 2). The waves of r3andr4interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1,n2and n3the type of interference, the thin-layer thickness Lin nanometers, and the wavelength λin nanometers of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.
