In the circuit of Fig. 30-76, R1=20kΩ,R2=20Ω,L=50mHand the ideal battery has ε=40V. Switch S has been open for a long time when it is closed at time t=0. Just after the switch is closed, what are (a) the current ibatthrough the battery and (b) the rate dibatdt? At t=3.0μs, what are (c) ibatand (d) dibatdt? A long time later, what are (e) ibatand (f) dibatdt?

Short Answer

Expert verified

At t=0

a) The current through the battery is i=0A

b) The rate of current through the battery is

At t=3.0μ²õ

c) The current through the battery isi=1.39A

d) The rate of current through the battery isεL=12.2V

At long time

e) The current through the battery isibat=2A

f) As t→∞the circuit is in steady state condition sodibatdt=0

Step by step solution

01

Given

Answer is missing

02

Understanding the concept

By using the equation 30-35 and the equation 30-40 we can find the rate of current as well as theemfin the coil at various times

Formula:

i=εR1-e-RtLεL=-Ldidt

Given

R1=20kΩR2=20ΩL=50mH=50×10-3Hε=40V

03

(a) The current through the battery at t = 0

As from the equation 30.40 the current in the inductance can be written as

i=εR1-e-RtL

Att=0the current is

i=εR1-1i=0A

04

(b) Calculate The rate of current through the battery at t = 0

According to equation 30-35 an inducedappearsin any coil in which the current is changing is

εL=-Ldidt

At thet=0emf is same as that of battery voltage so that the rate of current through the battery is

ε=-Ldibattdtdibattdt=εLdibattdt=400.050dibattdt=800A/s

05

(c) Calculate the current through the battery at t=3.0 μs

First find theequivalentresistance of the circuit,

R1AndR2are in parallel combination so that the equivalence resistance is

Req=R1R2R1+R2Req=20000×2020000+20Req=40000020020Req≈20Ω

From equation 30-34 we can write, the current through battery is

i=εR1-e-RtLi=εR1-e-ReqtLi=40201-e-20×3×10-60.05i=2×1-e-65i=1.39A

06

(d) Calculate the rate of current through the battery at  t=3.0 μs

The rate of change of the current is

εL=-Ldibatdtdibatdt=εLL

So we have to first find the εLas

From equation i=εReq1-e-RtLfrom the loop rule

iReq=ε-εe-RtLiReq=ε-εL0=ε-εL-iReqεL=ε-ibatReq

By substituting the value

εL=40-ibat×20εL=40-1.39×20εL=12.2V∴12.2=50×10-3.dibatdtdibatdt=12.250×10-3dibatdt=2.44×102A/s

07

(e) Calculate the current through the battery after a long time

Ast→∞, the circuit reaches steady state so that the equation becomes

ibat=εR1-e-RtLibat=εR1-0ibat=εR

By substituting the value, where R is the equivalent resistance

ibat=εReqibat=2A

08

(f) Calculate the rate of current through the battery after a long time

Ast→∞the circuit is in steady state condition so,

dibatdt=0

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

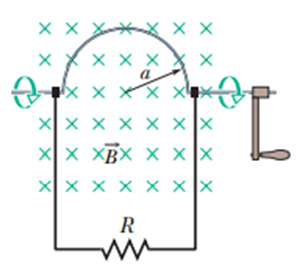

Question: In Figure, a stiff wire bent into a semicircle of radius a = 2.0cmis rotated at constant angular speed 40revsin a uniform 20mTmagnetic field. (a) What is the frequency? (b) What is the amplitude of the emf induced in the loop?

Figure (a) shows, in cross section, two wires that are straight, parallel, and very long. The ratio i1/i2of the current carried by wire 1 to that carried by wire 2 is13. Wire 1 is fixed in place. Wire 2 can be moved along the positive side of the x-axis so as to change the magnetic energy density uB set up by the two currents at the origin. Figure (b) gives uB as a function of the position x of wire 2. The curve has an asymptote ofuB=1.96nJ/m3asx→∞, and the horizontal axis scale is set byxs=60.0cm. What is the value of (a) i1 and (b) i2?

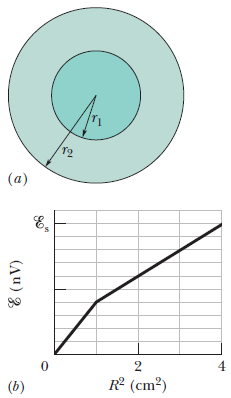

Figure 30-73a shows two concentric circular regions in which uniform magnetic fields can change. Region 1, with radius, has an outward magnetic field that is increasing in magnitude. Region 2, with radius r2=2.0cm, has an outward magnetic field that may also be changing. Imagine that a conducting ring of radius R is centered on the two regions and then the emf around the ring is determined. Figure 30-73b gives emf as a function of the square R2 of the ring’s radius, to the outer edge of region 2. The vertical axis scale is set by Es=20nV. What are the rates (a) dB1dtand (b) dB2dt? (c) Is the magnitude of increasing, decreasing, or remaining constant?

The wire loop in Fig. 30-22ais subjected, in turn, to six uniform magnetic fields, each directed parallel to the axis, which is directed out of the plane of the figure. Figure 30- 22bgives the z components Bz of the fields versus time . (Plots 1 and 3 are parallel; so are plots 4 and 6. Plots 2 and 5 are parallel to the time axis.) Rank the six plots according to the emf induced in the loop, greatest clockwise emf first, greatest counter-clockwise emf last.

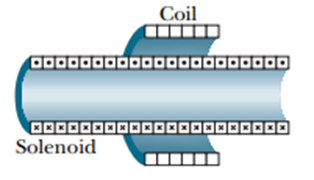

In Figure, a 120 turncoil of radius 1.8 cm and resistance 5.3Ωis coaxial with a solenoid of 220 turne/cm and diameter 3.2 cm. The solenoid current drops from 1.5 Ato zero in time interval ∆t=25ms. What current is induced in the coil during∆t?
