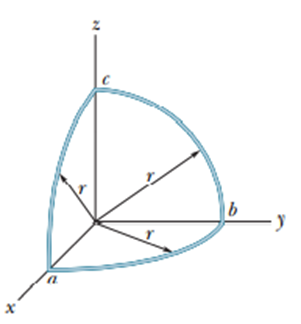

In Fig. 30-26, a wire loop has been bent so that it has three segments: segment bc(a quarter-circle), ac(a square corner), and ab(straight). Here are three choices for a magnetic field through the loop:

(1)B1=3i^+7j^-5tk^,(2)B2=5ti^-4j^-15k^,(3)B3=2i^-5tj^-12k^,

where Bis in milliteslas and tis in seconds. Without written calculation, rank the choices according to (a) the work done per unit charge in setting up the induced current and (b) that induced current, greatest first. (c) For each choice, what is the direction of the induced current in the figure?

Short Answer

Expert verified
  1. The rank of magnetic fields according to the work done per unit charge in setting up the induced current:B2,B1,B3.
  2. The rank of magnetic fields according to the induced current:B2,B1,B3.
  3. The direction of each induced current will be: B2: counter-clockwise, B1: clockwise, and B3: counterclockwise.

Step by step solution

01

Step 1: Given

  1. The three segments of the loop are bc (a quarter circle), ac (a square corner), and ab (straight).
  2. The three choices of a magnetic field are,

B1=3i^+7j^-5tk^,B2=5ti^-4j^-15k^,B3=2i^-5tj^-12k^,

02

Determining the concept

The magnitude of the induced emf is the work done per unit charge in setting up the induced current. It depends upon the magnitude of the changing magnetic flux through the area of the loop. It also depends upon the angle between the magnetic field and the area vector for each part of the loop.

=ddt=B.A

Where,

d= change in magnetic flux,

dt= change in time,

B = magnetic field,

A = area,

= magnetic flux,

03

(a) Determining the rank of magnetic fields according to the work done per unit charge in setting up the induced current

According to Faraday鈥檚 law, changing magnetic flux induces current and emf in the loop. The induced emf is the work done per unit charge in setting up the induced current. The magnitude of magnetic flux also depends upon the angle between the magnetic field and area vector, given as

=ddt=B.A

Comparing the areas of all sections of the loop, find the area of the loop by segment ac is the greatest, the area of the loop by segment bc is smaller than that and the area of the loop by the segment ab is the least.

By observing the choices of the magnetic fields, the changing magnetic flux will be maximum for the segment ac for choice role="math" localid="1661421114929" B2 . This is because the X component of the B2 is changing with time while other components are constant with time. Also, this time-varying componentB2 is perpendicular to segment ac, which has the greatest area. Thus emf i.e. work done per unit charge in setting up the induced current will be maximum.

For choiceB1, the time-varying component is the Z component. This is perpendicular to the segment bc. Hence, the changing magnetic flux will be smaller than that forB2.

For choiceB3, the time-varying component is the Y component. This is perpendicular to the segment ab. Hence the changing magnetic flux will be the leastB3among the three.

Hence, the rank of magnetic fields according to the work done per unit charge in setting up the induced current: B2,B1,B3.

04

(b) Determining the rank of magnetic fields according to the induced current

Since the magnetic flux change is maximum for B2, the magnitude of induced emf will also be maximum for B2. For B1, the magnitude of induced current will be smaller than that for B2and the induced current will be least for B3.

Hence, the rank of magnetic fields according to the induced current: B2,B1,B3.

05

(c) Determining the direction of each induced current

ForB1, the direction of the time-varying magnetic field is along 鈥Z-axis. Hence, the direction of the induced current should be such that it creates a field that opposes this field as per the Lenz law. Therefore, the current will be counterclockwise.

Similarly,B2, the direction of the time-varying magnetic field is along the +X axis. Hence the direction of the induced current should be such that it creates a field that opposes this field as per the Lenz law. Hence, the current will be clockwise.

Similarly,B3, the direction of the time-varying magnetic field is along -Y-axis. Hence, it will be counterclockwise. Therefore, the current will be counter-clockwise.

Hence, the direction of each induced current will be:

B2: counter-clockwise, B1: clockwise, and B3: counterclockwise.

The work done per unit charge is the emf induced in the loop. The magnitude of induced emf is decided by the magnitude of the changing magnetic flux through the area of the loop i.e. by the magnitude of the field and the angle between the area vector and magnetic field. By comparing the magnitudes of the areas and the magnetic flux, we can rank the choices of the magnetic field.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Figure 30-78 shows a wire that has been bent into a circular arc of radius r = 24cm, centred at O. A straight wire OP can be rotated about O and makes sliding contact with the arc at P. Another straight wire OQ completes the conducting loop. The three wires have cross-sectional area 1.20mm2 and resistivity p=1.7010-8.m, and the apparatus lies in a uniform magnetic field of magnitude B = 0.150Tdirected out of the figure. Wire OP begins from rest at angle =0 and has constant angular acceleration of 12rad/sec. As functions of u (in rad), find (a) the loop鈥檚 resistance and (b) the magnetic flux through the loop. (c) For what is the induced current maximum and (d)what is the maximum?

A uniform magnetic fieldBis perpendicular to the plane of a circular loop of diameter 10 cmformed from wire of diameter2.5 mm and resistivity1.69108-m. At what rate must the magnitude ofBchange to induce a 10Acurrent in the loop?

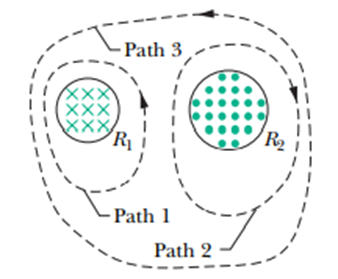

Figure shows two circular regions R1 and R2 with radii r1=20.0cmandr2=30.0cm. In R1 there is a uniform magnetic field of magnitudeB1=50.0mT directed into the page, and in R2 there is a uniform magnetic field of magnitude B1=75.0mTdirected out of the page (ignore fringing). Both fields are decreasing at the rate of 8.50 mT/s. (a) Calculate E.dsfor path 1.(b) Calculate E.dsfor path 2.(c) Calculate E.dsfor path 3.
