Chapter 30: Q61P (page 900)

A coil is connected in series with a $10.0 k 鈩�$ resistor. An ideal 50.0 Vbattery is applied across the two devices, and the current reaches a value of 2.00 mAafter 5.00 ms.(a) Find the inductance of the coil. (b) How much energy is stored in the coil at this same moment?

Short Answer

Expert verified

a) $L = 97.9 H$

b) $U_{b} = 0.196 mJ$

Step by step solution

01

Given

$R = 10 k 鈩� = 10 脳 10^{3} 鈩� E = 50.0 V I = 2.00 m A = 2.00 脳 10^{- 3} A t = 5.00 m s = 5 脳 10^{- 3} s$

02

Understanding the concept

Here we have to use the formula for current through RL circuit to find inductance. Then by using formula for energy stored by inductor鈥檚 magnetic field, we can calculate the energy stored in the coil.

Formula:

$i = \frac{E}{R} (1 - e^{\frac{t}{{}^{t}L}}) U_{b} = 0.5 L i^{2}$

03

(a) Find the inductance of the coil

Here, the rise of current for RL circuit is as follows:

$i = \frac{E}{R} (1 - e^{- \frac{t}{{}^{t}L}}) i = \frac{E}{R} (1 - e^{- \frac{t 脳 R}{L}}) 2.00 脳 10^{- 3} = \frac{50}{10 脳 10^{3}} (1 - e^{- \frac{5 脳 10^{- 3} 脳 10 脳 10^{3}}{L}}) 0.4 = (1 - e^{\frac{50}{- L}}) 0.6 = e^{- 50 / L} L = - \frac{50}{I n (0.6)} L = 97.9 H$

04

(b) Calculate how much energy is stored in the coil at this same moment

The inductor鈥檚 magnetic field stores energy and is given by

$U_{b} = 0.5 L i^{2} U_{b} = 0.5 脳 97.9 脳 (2.00 脳 10^{- 3})^{2}$

$U_{b} = 0.196 mJ$

Unlock Step-by-Step Solutions & Ace Your Exams!

Full Textbook Solutions
Get detailed explanations and key concepts
Unlimited Al creation
Al flashcards, explanations, exams and more...
Ads-free access
To over 500 millions flashcards
Money-back guarantee
We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A circular coil has a 10.0 cm radius and consists of 30.0closely wound turns of wire. An externally produced magnetic field of magnitude 2.60mTis perpendicular to the coil. (a) If no current is in the coil, what magnetic flux links its turns? (b) When the current in the coil is 3.80 Ain a certain direction, the net flux through the coil is found to vanish. What is the inductance of the coil?

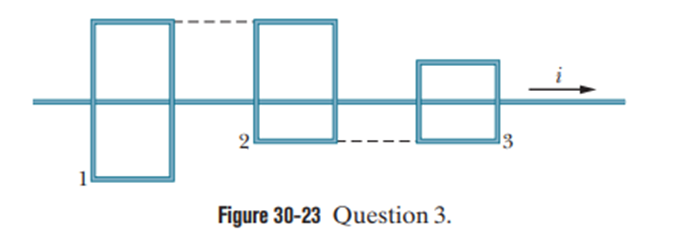

In Fig. 30-23, a long straight wire with current ipasses (without touching) three rectangular wire loops with edge lengths L, 1.5L, and 2L. The loops are widely spaced (so as not to affect one another). Loops 1 and 3 are symmetric about the long wire. Rank the loops according to the size of the current induced in them if current iis (a) constant and (b) increasing, greatest first.
