Chapter 34: Q90P (page 1042)

Figure 34-46a shows the basic structure of an old film camera. A lens can be moved forward or back to produce an image on film at the back of the camera. For a certain camera, with the distance i between the lens and the film set at f = 5.00 cm, parallel light rays from a very distant object O converge to a point image on the film, as shown. The object is now brought closer, to a distance of p = 100 cm, and the lens鈥揻ilm distance is adjusted so that an inverted real image forms on the film (Fig. 34-46b). (a) What is the lens鈥揻ilm distance i now? (b) By how much was distance i changed?

Short Answer

Expert verified
  1. The lens-film distanceis 5.3 cm.
  2. The change in lens-film distance i is 0.30 cm.

Step by step solution

01

Step 1: Given data

  • Focal length,f=5.0cm .
  • Object distance, p=100cm.
02

Determining the concept

Using the lens formula, calculate the lens-film distance, which is image distance i. Using this, the change in lens-film distance can be calculated.

Formulae are as follows:

1f=1p+1i

Here, p is the pole, and i is the image distance, f is the focal length.

03

(a) Determining the lens-film distance i

According to equation 34-4, find the image distance as,

1f=1p+1i

Rearranging this formula gives,

1i=1f-1p

So,

i=1f-1p-1

Substitute the values in the above expression, and we get,

i=15-1100-1=100脳5100-5=50095=5.26cm

So,

i鈮�5.3cm

Therefore, the lens-film distance is 5.3 cm.

04

(b) Determine the change in lens-film distance i

The change in the lens-film distance:

Change in lens-film distance is,

Change=i-f=5.3-5.0=0.30cm

Therefore, the change in lens-film distance i is 0.30 cm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

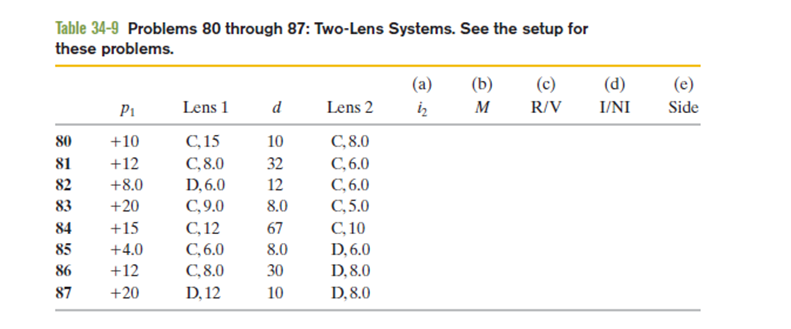

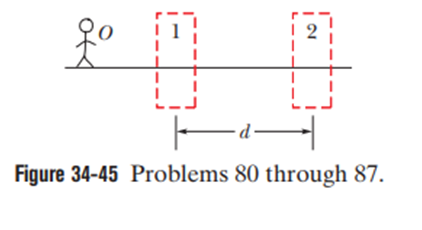

80 through 87 80, 87 SSM WWW 83 Two-lens systems. In Fig. 34-45, stick figure O (the object) stands on the common central axis of two thin, symmetric lenses, which are mounted in the boxed regions. Lens 1 is mounted within the boxed region closer to O, which is at object distance p1. Lens 2 is mounted within the farther boxed region, at distance d. Each problem in Table 34-9 refers to a different combination of lenses and different values for distances, which are given in centimeters. The type of lens is indicated by C for converging and D for diverging; the number after C or D is the distance between a lens and either of its focal points (the proper sign of the focal distance is not indicated). Find (a) the image distance i2for the image produced by lens 2 (the final image produced by the system) and (b) the overall lateral magnification Mfor the system, including signs.Also, determine whether the final image is (c) real(R) or virtual (V), (d) inverted (I)from object O or non-inverted (NI), and (e) on the same side of lens 2 as the object O or on the opposite side.
