A concave shaving mirror has a radius of curvature of 35cm. It is positioned so that the (upright) image of a man’s face is 2.5 times the size of the face. How far is the mirror from the face?

Short Answer

Expert verified

Distance of mirror from the face is p=10.5cm.

Step by step solution

01

Step 1: Given

The radius of curvature isr=35.0cm

Magnification is m=2.50

02

Determining the concept

Use the concept of magnification and focal length of the mirror. Find the expression for image distance from the formula for magnification and substitute it in the mirror formula. Substitute the given values to find the distance of the mirror from the face.

Formulae are as follows:

m=-ip

1f=1p+1i

where, m is the magnification, p is the pole, fis the focal length.

03

Determining the distance of the mirror from the face

The magnification is given by,

m=-ipi=-mp

Plugging this in the mirror equation,

1f=1p+1i1f=1p-1mp

Use the equation of focal length.

For spherical mirrors,f=r2

Therefore,

2r=1p-1mp

Solve it for p:

2r=1p1-1mp=r21-1m

Plugging the values,

p=35.021-12.50p=10.5cm

Therefore, the distance of the mirror from the face is p=10.5cm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

17 through 29 22 23, 29 More mirrors. Object O stands on the central axis of a spherical or plane mirror. For this situation, each problem in Table 34-4 refers to (a) the type of mirror, (b) the focal distance f, (c) the radius of curvature r, (d) the object distance p, (e) the imagedistance i, and (f) the lateral magnification m. (All distances are in centimeters.) It also refers to whether (g) the image is real (R)or virtual localid="1662996882725" (V), (h) inverted (I)or noninverted (NI)from O, and (i) on the same side of the mirror as object O or on the opposite side. Fill in the missing information. Where only a sign is missing, answer with the sign.

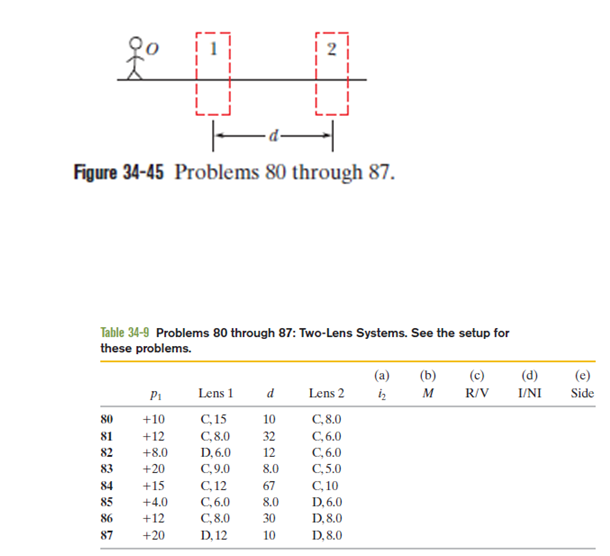

80 through 87 80, 87 SSM WWW 83 Two-lens systems. In Fig. 34-45, stick figure (the object) stands on the common central axis of two thin, symmetric lenses, which are mounted in the boxed regions. Lens 1 is mounted within the boxed region closer to, which is at object distance p1. Lens 2 is mounted within the farther boxed region, at distance d. Each problem in Table 34-9 refers to a different combination of lenses and different values for distances, which are given in centimeters. The type of lens is indicated by converging and for diverging; the number after or is the distance between a lens and either of its focal points (the proper sign of the focal distance is not indicated). Find (a) the image distance i2for the image produced by lens 2 (the final image produced by the system) and (b) the overall lateral magnification Mfor the system, including signs. Also, determine whether the final image is (c) real (R)or virtual (V), (d) inverted(I) from object or non-inverted (NI), and (e) on the same side of lens 2 as the object or on the opposite side.
