a real inverted imageof an object is formed by a particular lens (not shown); the object–image separation is, measured along the central axis of the lens. The image is just half the size of the object. (a) What kind of lens must be used to produce this image? (b) How far from the object must the lens be placed? (c) What is the focal length of the lens?

Short Answer

Expert verified
  1. The lens must be converging type .
  2. The distance of lens from object is26.7cm .
  3. The focal length is 8.89cm.

Step by step solution

01

 Step 1: The given data

  1. The object-image separation,d=40.0cm
  2. The image is inverted and real.
  3. The size of image is half of size of object.
02

Understanding the concept of properties of the lens

Here, we can determine the type of lens from the nature of the image. To find the object distance, we need to use the equation of the magnification given by equations 34.5 and 34.6 and the given value of the object–image separation distance. We can calculate the focal distance using lens equation 34.4.

03

a) Calculation of the type of lens

Since the image formed is real, thus, the lens must be a converging lens.

Hence, it is a type of converging lens.

04

 Step 4: b) Calculation of the object distance

Using the given data in equation (iii), we can get the magnification value of the object as follows:

m=-12

Now, the image distance using the above value in equation (ii) can be given as follows:

12=ipi=p2..............................(a)

Now, using the above value and given data that the object-image separationd=40cm , we can get the object distance from the mirror as follows:

i+p=40.0p2+p=40.0p=23×40.0=26.66667cm≈26.7cm

Hence, the value of the object distance is 26.7cm.

05

c) Calculation of the focal length

Substituting the object distance value in equation (a), we can get the image distance as follows:

i=26.7cm2=13.33cm

Now, using the data in equation (i), we can get the focal length as follows:

1f=113.33+126.67=0.1125f=8.88889cm≈8.89cm

Hence, the value of focal length is 8.89cm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

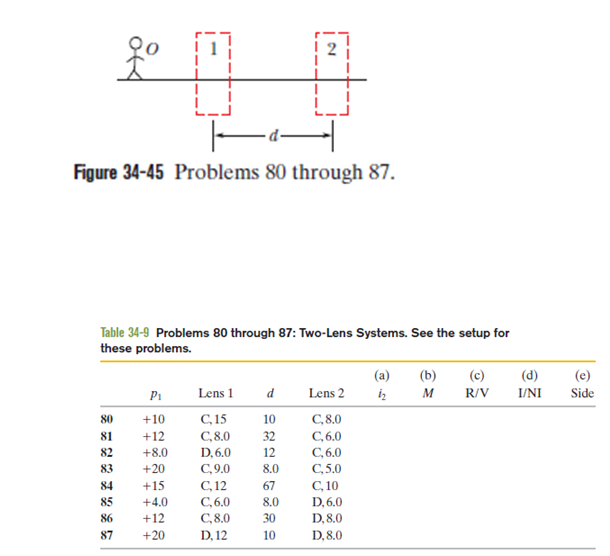

80 through 87 80, 87 SSM WWW 83 Two-lens systems. In Fig. 34-45, stick figure O (the object) stands on the common central axis of two thin, symmetric lenses, which are mounted in the boxed regions. Lens 1 is mounted within the boxed region closer to O, which is at object distance p1. Lens 2 is mounted within the farther boxed region, at distance d. Each problem in Table 34-9 refers to a different combination of lenses and different values for distances, which are given in centimeters. The type of lens is indicated by C for converging and D for diverging; the number after C or D is the distance between a lens and either of its focal points (the proper sign of the focal distance is not indicated). Find (a) the image distance i2for the image produced by lens 2 (the final image produced by the system) and (b) the overall lateral magnification Mfor the system, including signs. Also, determine whether the final image is (c) real (R)or virtual (V), (d) inverted(I) from object O or non- inverted (NI), and (e) on the same side of lens 2 as object O or on the opposite side.

Figure 34-34 shows a small light bulb suspended at distance d1=250cmabove the surface of the water in a swimming pool where the water depth d2=200cm. The bottom of the pool is a large mirror. How far below the mirror surface is the image of the bulb? (Hint: Assume that the rays are close to a vertical axis through the bulb, and use the small-angle approximation in which sinθ≈tanθ≈θ)

A fruit fly of height H sits in front of lens 1 on the central axis through the lens. The lens forms an image of the fly at a distance d=20cmfrom the fly; the image has the fly’s orientation and height H1=2.0H. What are (a) the focal lengthf1 of the lens and (b) the object distance p1of the fly? The fly then leaves lens 1 and sits in front of lens 2, which also forms an image at d=20cmthat has the same orientation as the fly, but now H1=0.50H. What are (c) f2and (d) p2?

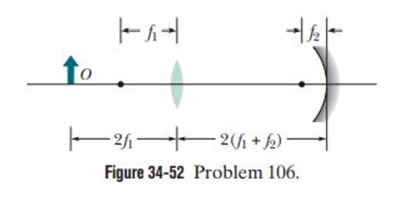

In Fig. 34-52, an object is placed in front of a converging lens at a distance equal to twice the focal length f1of the lens. On the other side of the lens is a concave mirror of focal lengthf2separated from the lens by a distance 2(f1+f2). Light from the object passes rightward through the lens, reflects from the mirror, passes leftward through the lens, and forms a final image of the object. What are (a) the distance between the lens and that final image and (b) the overall lateral magnification M of the object? Is the image (c) real or virtual (if it is virtual, it requires someone looking through the lens toward the mirror), (d) to the left or right of the lens, and (e) inverted or non-inverted relative to the object?

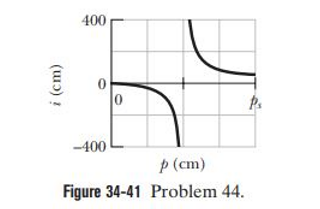

An object is placed against the center of a thin lens and then moved away from it along the central axis as the image distance is measured. Figure 34-41 gives i versus object distance p out to ps=60cm. What is the image distancewhen p=100cm?
