In Fig. 34-32, an isotropic point source of light Sis positioned at distancedfrom a viewing screen Aand the light intensityIPat pointP(level withS) is measured. Then a plane mirrorMis placed behindSat distanced. By how much isIPmultiplied by the presence of the mirror?

Short Answer

Expert verified

The light intensity Ipis multiplied by 1.11.

Step by step solution

01

Identification of the given data

The given data is listed as follows,

  • Distance between the source and the pointPisd.
  • The intensity of the light at point is IP.
02

Expression of the intensity due to source

The intensity due to the sourceSis expressed as follows,

Ip=Ad2 …(¾±)

Here, Ais the constant, and dis the distance between the source and the point.

The total intensity due to the presence of the mirror will be the sum of the intensity due to the source and the intensity due to the image.

03

Determination of the amount of the light intensity that is multiplied by the presence of the mirror

Now, if the plane mirror is placed behindSat a distanced, then the image will be formed at a distancedbehind the mirror. So, the total distance from the image to the pointPis as follows,

d'=3d

The intensity due to the image is as follows,

I'=A3d2=A9d2

…(¾±¾±)

It can be observed from equations (i) and (ii),

I'=Ip9

The total intensity at point Pdue to the presence of the mirror will be the sum of the intensity due to the source, and the intensity due to the image.

I=Ip+I'=Ip+Ip9=10Ip9=1.11Ip

Thus, the light intensity Ipis multiplied by 1.11.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

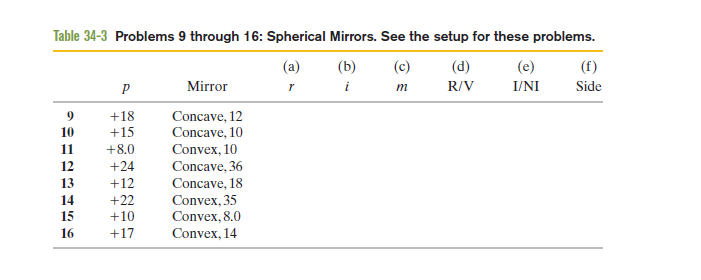

9, 11, 13 Spherical mirrors. Object Ostands on the central axis of a spherical mirror. For this situation, each problem in Table 34-3 gives object distance ps (centimeters), the type of mirror, and then the distance (centimeters, without proper sign) between the focal point and the mirror. Find (a) the radius of curvature r (including sign), (b) the image distance i, and (c) the lateral magnification m. Also, determine whether the image is (d) real (R) or virtual (V), (e) inverted (I) from objectO or non-inverted (NI), and (f) on the same side of the mirror asO or on the opposite side.

Prove that if a plane mirror is rotated through an angle a, the reflected beam is rotated through an angle 2α. Show that this result is reasonable for α=45∘.

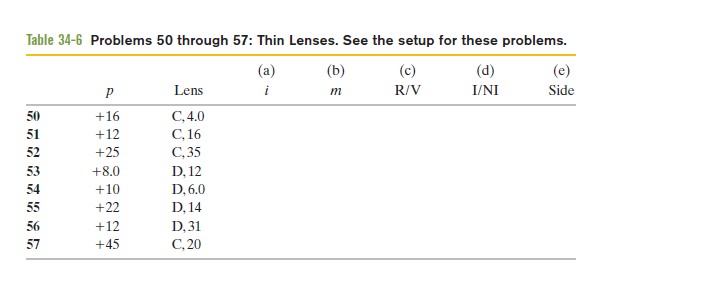

50 through 57 55, 57 53 Thin lenses. Object Ostands on the central axis of a thin symmetric lens. For this situation, each problem in Table 34-6 gives object distance p (centimeters), the type of lens (C stands for converging and D for diverging), and then the distance (centimeters, without proper sign) between a focal point and the lens. Find (a) the image distance iand (b) the lateral magnification m of the object, including signs. Also, determine whether the image is (c) real (R) or virtual (V) , (d) inverted (I)from object O or non inverted (NI) , and (e) on the same side of the lens as object Oor on the opposite side.

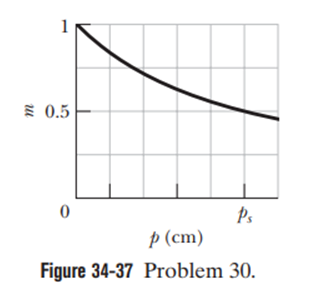

Figure 34-37 gives the lateral magnification mof an object versus the object distanc pfrom a spherical mirror as the object is moved along the mirror’s central axis through a range of values p. The horizontal scale is set by Ps=10.0mm. What is the magnification of the object when the object is 21cm from the mirror?

A pinhole camera has the hole a distance12cmfrom the film plane, which is a rectangle of height 8.0cmand width 6.0cm . How far from a painting of dimensions 50cm by 50cmshould the camera be placed so as to get the largest complete image possible on the film plane?
