A uniformly charged conducting sphere of1.2 mdiameter has surface charge density 8.1 mC/m2 . Find (a) the net charge on the sphere and (b) the total electric flux leaving the surface.

Short Answer

Expert verified
  1. The net charge on the sphere is 3.7×10-5C.
  2. The total electric flux leaving the surface is 4.1×106N·m2/C.

Step by step solution

01

The given data

  1. Diameter of the sphere,D=1.2m
  2. Surface charge density, σ=8.1μ°ä/m2
02

Understanding the concept of Gauss law-planar symmetry

Using the concept of surface charge density, we can get the charge accumulated by the sphere. Again using this charge value, we can get the electric flux leaving the surface by using the concept of the Gauss flux theorem.

Formulae:

The surface charge density,

σ=qA (1)

The electric flux leaving the surface,

ϕ=qε0 (2)

03

a) Calculation of the net charge

The surface area of the sphere:

A=4Ï€¸é2=Ï€¶Ù2.

Now, using this value in equation (1), we can get the net charge on the sphere as:

q=σπ¶Ù2=Ï€1.2m28.1×10-6C/m2=3.7×10-5C

Hence, the value of the charge is 3.7×10-5C.

04

b) Calculation of the electric flux

Using the charge value in equation (2), we can get the electric flux leaving the surface of the sphere as:

ϕ=3.7×10-5C8.85×10-12C2/N·m2=4.1×106N·m2/C.

Hence, the value of the electric flux is 4.1×106N·m2/C.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

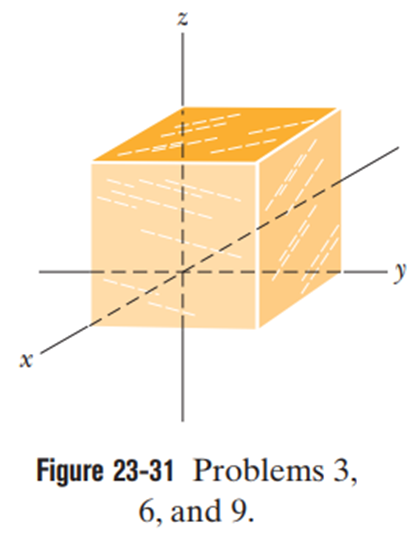

At each point on the surface of the cube shown in Fig. 23-31, the electric field is parallel to the z-axis. The length of each edge of the cube is3.0m. On the top face of the cube the field is E→=-34k^N/Cand on the bottom face it isE→=+20k^N/C Determine the net charge contained within the cube.

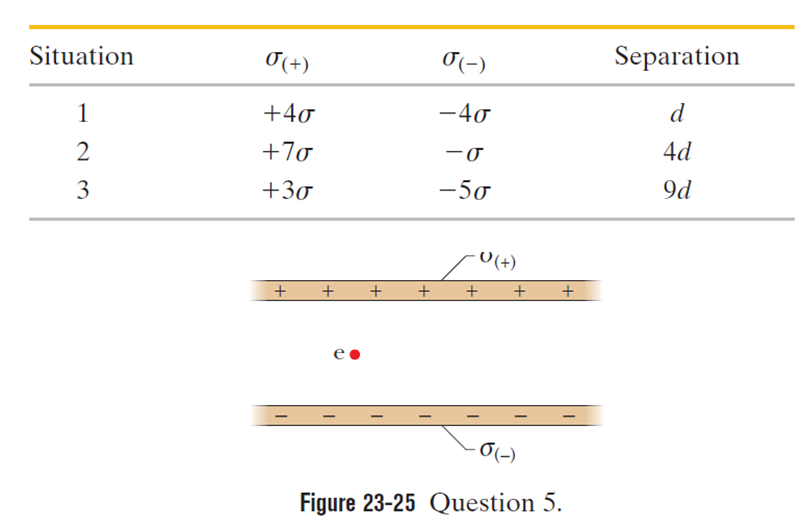

In Fig. 23-25, an electron is released between two infinite non-conducting sheets that are horizontal and have uniform surface charge densitiesσ(+)andσ(-), as indicated. The electron is subjected to the following three situations involving surface charge densities and sheet separations. Rank the magnitudes of the electron’s acceleration, greatest first.

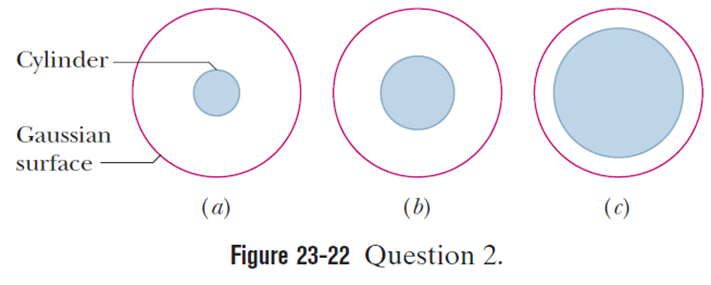

Figure 23-22 show, in cross-section, three solid cylinders, each of length L and uniform charge Q. Concentric with each cylinder is a cylindrical Gaussian surface, with all three surfaces having the same radius. Rank the Gaussian surfaces according to the electric field at any point on the surface, greatest first.

In Fig. 23-54, a solid sphere of radius a=2.00cmis concentric with a spherical conducting shell of inner radius b=2.00a and outer radius c=2.40a. The sphere has a net uniform charge q1=+5.00fC ; the shell has a net charge q2=-q1 . What is the magnitude of the electric field at radial distances (a) r=0, (b) r=a/2.00, (c) r=a, (d) r=1.50a, (e) r=2.30a, and (f) r=3.50a? What is the net charge on the (g) inner and (h) outer surface of the shell?

An electric field given by E=4.0i^-3.0(y2+2.0)j^, pierces a Gaussian cube of edge length 2.0mand positioned as shown in Fig. 23-7. (The magnitude Eis in Newton per coulomb and the position xis in meters.) What is the electric flux through the (a) top face, (b) bottom face, (c) left face, and (d) back face? (e) What is the net electric flux through the cube?
