A particle of charge+q is placed at one corner of a Gaussian cube. What multiple ofq/ε0gives the flux through (a) each cube face forming that corner and (b) each of the other cubes faces?

Short Answer

Expert verified
  1. The multiple that gives the flux through each cube face is zero.
  2. The multiple that gives the flux through each of the cube’s faces are 1/24 or 0.0417.

Step by step solution

01

The given data

The total flux through any surface that completely surrounds the point charge is q/ε0

02

Understanding the concept of Gauss law

Using the concept of Gauss law and the planar symmetry, we can get the net flux through each cube face by considering the concept of total flux through the cube.

03

a) Calculation of the multiple factors for flux through each face

If we stack identical cubes side by side and directly on top of each other, we will find that eight cubes meet at any corner.

Thus, one-eighth of the field lines emanating from the point charge pass through a cube with a corner at the charge, and the total flux through the surface of such a cube is q/8ε0.

Now the field lines are radial, so at each of the three cube faces that meet at the charge, the lines are parallel to the face and the flux through the face is zero.

04

b) Calculation of the multiple factors for flux through each of the other cubes’ faces

The fluxes through each of the other three faces are the same, so the flux through each of them is one-third of the total.

That is, the flux through each of these faces is given as:

13×q8ε0=q24ε0

Thus, the multiple factors are 1/24 or 0.0417.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A charge of 6.00 pCis spread uniformly throughout the volume of a sphere of radius r = 4.00 cm. What is the magnitude of the electric field at a radial distance of

(a) 6.00 cmand

(b) 3.00 cm?

A thin-walled metal spherical shell of radius a has a charge. Concentric with it is a thin-walled metal spherical shell of radius and charge . Find the electric field at points a distance r from the common center, where

(a) r<a,

(b) a<r<b,and

(c) r>b.

(d) Discuss the criterion you would use to determine how the charges are distributed on the inner and outer surfaces of the shells.

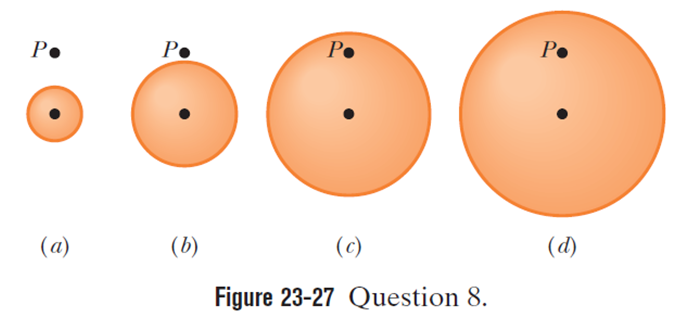

Figure 23-27 shows four solid spheres, each with charge Quniformly distributed through its volume. (a) Rank the spheres according to their volume charge density, greatest first. The figure also shows a point for each sphere, all at the same distance from the center of the sphere. (b) Rank the spheres according to the magnitude of the electric field they produce at point P, greatest first.

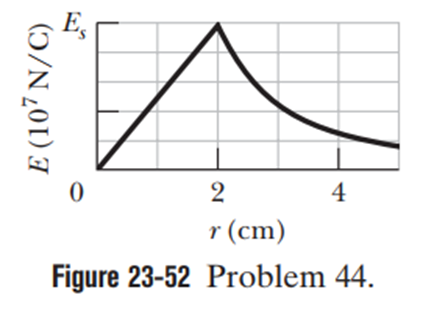

Figure 23-52 gives the magnitude of the electric field inside and outside a sphere with a positive charge distributed uniformly throughout its volume. The scale of the vertical axis is set by Es=5.0×10N/C. What is the charge on the sphere?

A charge of uniform linear density 2.0nC/m is distributed along a long, thin, non-conducting rod. The rod is coaxial with a long conducting cylindrical shell (inner radius=5.0 cm , outer radius=10 cm ). The net charge on the shell is zero. (a) What is the magnitude of the electric field from the axis of the shell? What is the surface charge density on the (b) inner and (c) outer surface of the shell?
