Chapter 5: Q 78P (page 122)

In Fig. 5-64, a forceof magnitude 12Nis applied to a FedEx box of mass m2=1.0kg. The force is directed up a plane tilted by 胃=37掳. The box is connected by a cord to a UPS box of mass m1=3.0kgon the floor. The floor, plane, and pulley are friction less, and the masses of the pulley and cord are negligible. What is the tension in the cord?

Short Answer

Expert verified

Tension(T)is4.6N

Step by step solution

01

Given information

It is given that,

F=12N

m2=1.0kg

胃=37o

m1=3.0kg

02

Determining the concept

The problem is based on Newton鈥檚 second law of motion which states that the rate of change of momentum of a body is equal in both magnitude and direction of the force acting on it. Thus, using the free body diagramdifferent forces acting on the objects can be found. Further, using Newton's second law of motion, the acceleration and tension in the cord can be computed.

Formula:

According to the Newton鈥檚 second law of motion,

Fnet=鈭�Ma

03

Determining the tension in the cord

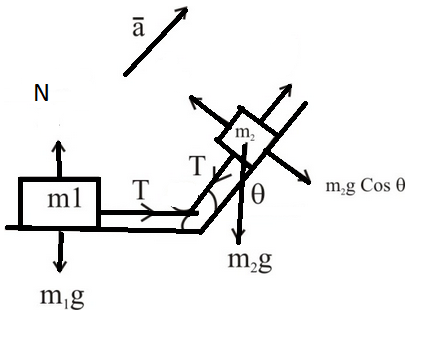

Free Body Diagram:

F-T-m2gsin胃=m2aT=m1a

By solving above two equations,

a=F-m2gsin胃m1+m2a=12-1脳9.8脳sin37掳3+1a=1.53m/s2

Now, tension is given by,

T=m1aT=3脳1.53T=4.6N

Hence, tension is4.6N

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Three forces act on a particle that moves with unchanging velocity v鈫�=(2m/s)i^-(7m/s)j^. Two of the forces arelocalid="1660906954720" F鈫�1=(2N)i^+(3N)j^+(鈥�2N)k^andF鈫�2=(鈥�5N)i^+(8N)j^+(鈥�2N)k^. What is the third force?

Tarzan, who weighs820N , swings from a cliff at the end of a 20.0mvine that hangs from a high tree limb and initially makes an angle of 22.0掳with the vertical. Assume that an xaxis extends horizontally away from the cliff edge and a yaxis extends upward. Immediately after Tarzan steps off the cliff, the tension in the vine is760N . Just then, (a) what is the force on him from the vine in unit-vector notation and the net force on him (b) what is in unit-vector notation and as (c) what is a magnitude and (d) what is the angle relative to the positive direction of the xaxis? (e) What is the magnitude of Tarzan鈥檚 acceleration and (f) What is the angle of Tarzan鈥檚 acceleration just then?

There are two horizontal forces on the 2.0 kgbox in the overhead view of the Figure but only one (of magnitudeF1=20N) is shown. The box moves along the xaxis. For each of the following values for the accelerationaxof the box, find the second force in unit-vector notation(a)10m/s2(b)20m/s2(c)0m/s2(d)-10m/s2(e)-20m/s2

The Zacchini family was renowned for their human-cannonball act in which a family member was shot from a cannon using either elastic bands or compressed air. In one version of the act, Emanuel Zacchini was shot over three Ferris wheels to land in a net at the same height as the open end of the cannon and at a range of 69 m. He was propelled inside the barrel for 5.2 m and launched at an angle of 53掳. If his mass was 85 kg and he underwent constant acceleration inside the barrel, what was the magnitude of the force propelling him? (Hint:Treat the launch as though it were along a ramp at53掳Neglect air drag.)

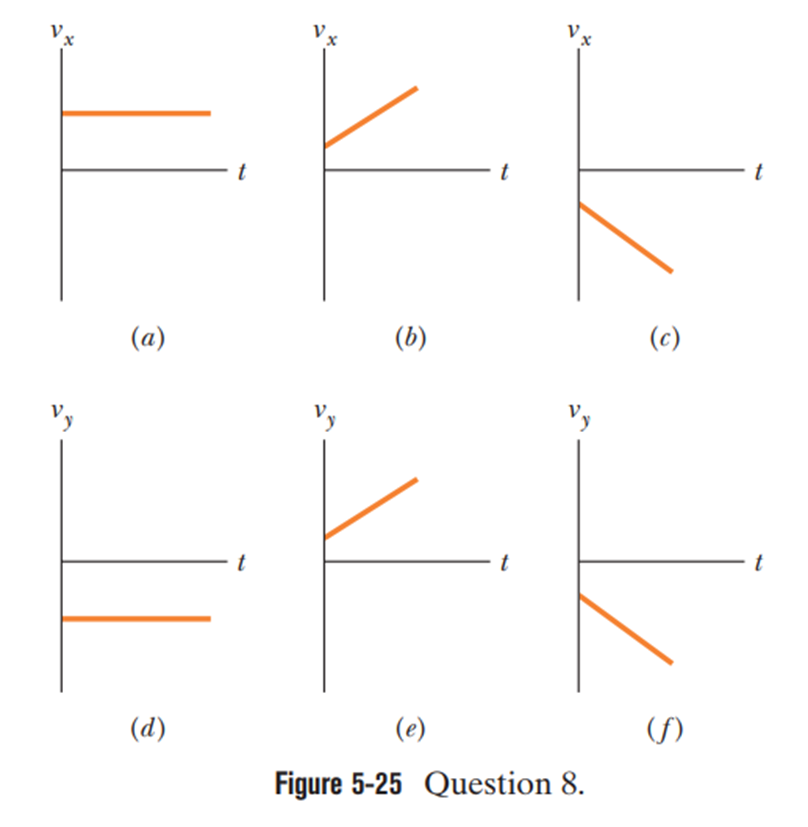

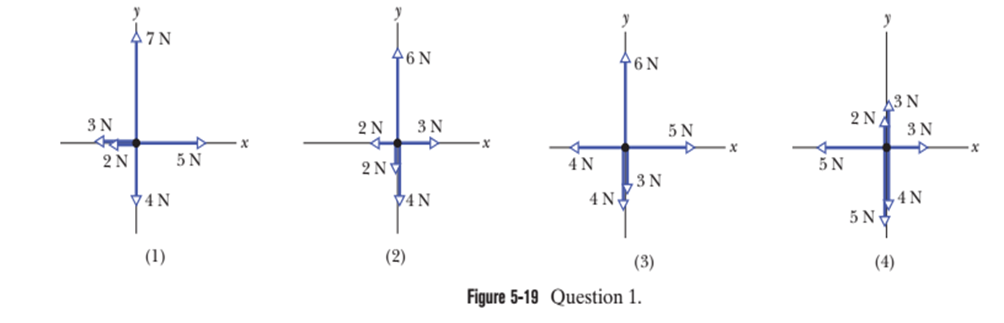

Figure 5-25 gives three graphs of velocity component and three graphs of velocity component . The graphs are not to scale. Which graph and which graph best correspond to each of the four situations in Question 1 and Fig. 5-19?
