Chapter 14: Q4Q (page 405)

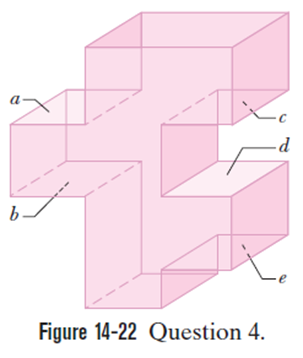

Figure 14-22 shows a tank filled with water. Five horizontal floors and ceilings are indicated; all have the same area and are located at distances L, 2L, 3Lorbelow the top of the tank. Rank them according to the force on them due to the water, greatest first.

Short Answer

Expert verified

The rank of floors according to the force on them due to the water, greatest first is

Fe>Fb=Fd>Fa=Fc.

Step by step solution

01

The given data

  1. Heights of floors from top of tank: he>hb=hd>ha=hc
  2. All floors have same area and are at distances, L ,2L or 3L below the top of the tank.
02

Understanding the concept of force and pressure

Pressure due to fluid is directly proportional to the depth from the surface of the water. Now, using this relation value of pressure and depth, we can get the behavior of the force on the body that is related to pressure.

Formula:

The gauge pressure on the body, p=蚁gh (i)

The force applied on a body due to the pressure,F=pA (ii)

03

Calculation of the rank of the floors according to their force

Substituting the value of gauge pressure on a body of equation (i) in equation (ii), we can get the value of the force

F=蚁ghA

Since area is thesame for all the surfaces, force is directly proportional to the height from the top of thetank.

Therefore, the rank according to the force on floors due to water isFe>Fb=Fd>Fa=Fc.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A small solid ball is released from rest while fully submerged in a liquid and then its kinetic energy is measured when it has moved 4.0cmin the liquid. Figure 14-40 gives the results after many liquids are used: The kinetic energy is plotted versus the liquid density, and sets the scale on the vertical axis. (a)What is the density?(b) What is the volume of the ball?

How much work is done by pressure in forcing 1.4m3of water through a pipe having an internal diameter of 13mmif the difference in pressure at the two ends of the pipe is 1.0atm?

What fraction of the volume of an iceberg (density 917kg/m3) would be visible if the iceberg floats: (a) in the ocean (salt water, density) and (b) in a river (fresh water, density 1000kg/m3)? (When salt water freezes to form ice, the salt is excluded. So, an iceberg could provide fresh water to a community.)

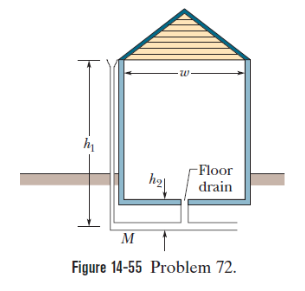

A very simplified schematic of the rain drainage system for a home is shown in Figure. Rain falling on the slanted roof runs off into gutters around the roof edge; it then drains through downspouts (only one is shown) into a main drainage pipe Mbelow the basement, which carries the water to an even larger pipe below the street. In Figure, a floor drain in the basement is also connected to drainage pipe M. Suppose the following apply: 1.The downspouts have height h1=11m, 2.the floor drain has heighth2=1.2m,3.pipe Mhas radius 3.0cm,4.the house side is width w=30mand front
