In one observation, the column in a mercury barometer (as is shown in Figure) has a measured heighth of 740.35mm. The temperature is5.0°C, at which temperature the density of mercury role="math" localid="1657193277146" ÒÏis 1.3608×104kg/m3. The free-fall acceleration g at the site of the barometer is 9.7835m/s2. What is the atmospheric pressure at that site in Pascal and in torr (which is the common unit for barometer readings)?

Short Answer

Expert verified
  1. Atmospheric pressure at that site in Pascal is98565.66Pa
  2. Atmospheric pressure at that site in torr is739.26torr

Step by step solution

01

The given data

Measured heighth=740.35mm

Density of mercury,ÒÏ=1.3608×104kg/m3

Free fall acceleration at site of barometer, g=9.7835m/s2

02

Understanding the concept of pressure

To find pressure, we can use the formula in terms of density, acceleration, and height. We can convert the pressure from Pascal to torr using the conversion factor.

Formula:

Pressure applied on a body, (i)

1torr=133.33Pa

03

 Calculation of pressure in Pascal

Atmospheric pressure in Pascal using equation (i) is given as:

p=1.3608×104kg/m3×9.7835m/s2x0.74035m=98565.66Pa.....................................(a)

Hence, the value of pressure in Pascal is98565.66Pa

04

b) Calculation of pressure in torr

From equation (a), we get the pressure, hence

p=98565.66Pa×1torr133.33Pa(∵1torr=133.33Pa)=739.26torr

Hence, the value of pressure in torr is role="math" localid="1657194537605" 739.26torr.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The sewage outlet of a house constructed on a slope is 6.59mbelow street level. If the sewer is localid="1657605982734" 2.16mbelow street level, find the minimum pressure difference that must be created by the sewage pump to transfer waste of average density localid="1657605999636" 1000.00kg/m3from outlet to sewer.

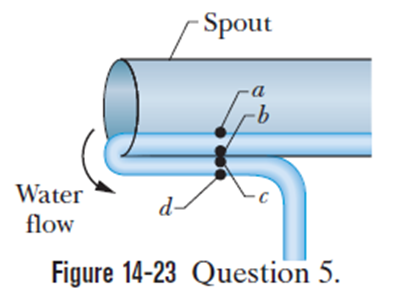

The teapot effect:Water poured slowly from a teapot spout can double back under the spout for a considerable distance (held there by atmospheric pressure) before detaching and falling. In Fig. 14-23, the four points are at the top or bottom of the water layers, inside or outside. Rank those four points according to the gauge pressure in the water there, most positive first.

A 8.60kgsphere of radius 6.22cmis at a depth of 2.22kmin seawater that has an average density of 1025kg/m3.What are the (a) gauge pressure, (b) total pressure, and (c) corresponding total force compressing the sphere’s surface? What are (d) the magnitude of the buoyant force on the sphere and (e) the magnitude of the sphere’s acceleration if it is free to move? Take atmospheric pressure to be 1.01×105Pa.

Water is moving with a speed of 5.0m/sthrough a pipe with a cross-sectional area of4.0\mathrm{~cm}^{2}.The water gradually descends 10mas the pipe cross-sectional area increases to 8.0cm2.

(a) What is the speed at the lower level?

(b) If the pressure at the upper level is 1.5×105Pa, What is the pressure at the lower level?

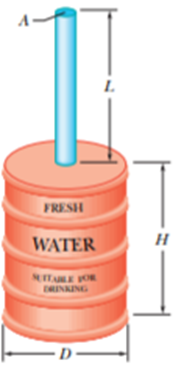

In Figure, an open tube of length L=1.8mand cross-sectional area A= 4.6cm2cmis fixed to the top of a cylindrical barrel of diameterD=1.2mand height H=1.8m. The barrel and tube are filled with water (to the top of the tube).Calculate the ratio of the hydrostatic force on the bottom of the barrel to the gravitational force on the water contained in the barrel. Why is that ratio not equal to 1.0? (You need not consider the atmospheric pressure.)
