In analyzing certain geological features, it is often appropriate to assume that the pressure at some horizontal level of compensation, deep inside Earth, is the same over a large region and is equal to the pressure due to the gravitational force on the overlying material. Thus, the pressure on the level of compensation is given by the fluid pressure formula. This model requires, for one thing, that mountains have roots of continental rock extending into the denser mantle (Figure). Consider a mountain of heightH=6.0kmkm on a continent of thickness T=32km. The continental rock has a density of2.9g/cm3 , and beneath this rock the mantle has a density of 3.3g/cm3. Calculate the depth of the root. (Hint: Set the pressure at points a and b equal; the depth y of the level of compensation will cancel out.)

Short Answer

Expert verified

The depth of the root is 44km

Step by step solution

01

The given data

  1. The height of the mountain,H=6.0kmor6000m
  2. Thickness of a continent,T=32kmor32000m
  3. Density of continental rock,ÒÏc=2.9g/cm3or2.9×103kg/m3
  4. Density of mantle, ÒÏm=3.3g/cm3or3.3×103kg/m3
02

Understanding the concept of pressure

The pressure at some horizontal level of compression, deep inside the earth, is the same over a large region and is equal to the pressure exerted by the gravitational force on the overlying material. Therefore, using the formula of gauge pressure, we can find the depth of the root.

Formula:

Pressure applied on a body, p=ÒÏgh (i)

03

Calculation of depth of the root

Aspa=pb,Fromequation(i)andthegivenvalues,wegetBut,pa=ÒÏcg(6.0km+32km+D)+ÒÏm(y-D).......(a)andpb=ÒÏcg(32km)+pmy.........................................(b)Therefore,equatingequations(a)and(b),wegetÒÏcg(6.0km+32km+D)+ÒÏm(y-D)=ÒÏcg(32km)+ÒÏmyÒÏc(38.0km+D)+ÒÏm(y-D)=ÒÏc(32km)+ÒÏmyÒÏc(6.0km)+ÒÏcD+ÒÏmy-ÒÏmD-ÒÏmy=0ÒÏc(6.0km)+ÒÏcD-ÒÏmD=0D=ÒÏc(6.0km)ÒÏm-ÒÏcD=(2.9g/cm3)(6.0km)3.3g/cm3-2.9g/cm3D=43.5km

Therefore, the depth of the root is 43.5km

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

What is the minimum area (in square meters) of the top surface of an ice slab 0.441m.thick floating on fresh water that will hold up to 938kgautomobile? Take the densities of ice and fresh water to beÒÏi=917kg/m3 and 998kg/m3, respectively.

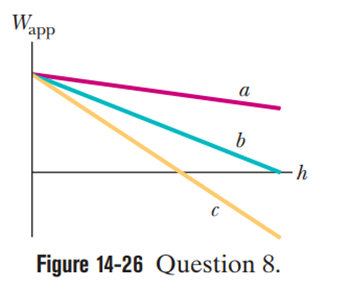

A rectangular block is pushed face-down into three liquids, in turn. The apparent weight Wappof the block versus depth hin the three liquids is plotted in Fig. 14-26. Rank the liquids according to their weight per unit volume, greatest first.

A garden hose with an internal diameter of 1.9cmis connected to a (stationary) lawn sprinkler that consists merely of a container with 24holes, each 0.13cmin diameter. If the water in the hose has a speed of 0.91m/s, at what speed does it leave the sprinkler holes?

A water pipe having a 2.5cminside diameter carries water into the basement of a house at a speed of 0.90m/sand a pressure of 170kPa.

(a) If the pipe tapers to 1.2cmand rises to the second floor 7.6mabove the input point, what is the speed and

(b) If the pipe tapers to 1.2cmand rises to the second floor 7.6mabove the input point, what is the water pressure at the second floor?

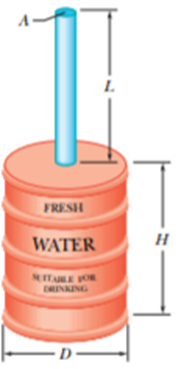

In Figure, an open tube of length L=1.8mand cross-sectional area A= 4.6cm2cmis fixed to the top of a cylindrical barrel of diameterD=1.2mand height H=1.8m. The barrel and tube are filled with water (to the top of the tube).Calculate the ratio of the hydrostatic force on the bottom of the barrel to the gravitational force on the water contained in the barrel. Why is that ratio not equal to 1.0? (You need not consider the atmospheric pressure.)
