A large aquarium of height 5.00 mis filled with fresh water to a depth of 2.00 m. One wall of the aquarium consists of thick plastic 8.00 mwide.

By how much does the total force on that wall increase if the aquarium is next filled to a depth of 4.00 m?

Short Answer

Expert verified

The increase in the total force on the wall, if the aquarium is filled to a depth of 2.00m, is4.69×105N

Step by step solution

01

The given data

  1. Height of aquarium, H=5.00m
  2. Depth of aquarium, h=2.0m
  3. Thickness of the plastic, w=8.00m
02

Understanding the concept of force and pressure

Using the formula of pressure in terms of force per unit area and the formula for pressure in terms of density, gravitational acceleration, and depth, we can find the increase in the total force on the wall.

Formulae:

Force applied on a body in terms of pressure, F = pA (i)

Pressure applied on a fluid surface, p =ÒÏgh (ii)

03

Calculation of the increased force

Differentiating equation (i) with respect to area A, we get

dF = pdA

∫dF=∫pdA∵Togetforceinthatgivenarea,integratingbothsidesF=∫pdA...................(1)

The force at depth, h=2.0cm,as

dA=w×dh,P=ÒÏgh,

Substituting the above values in the equation (1), we get

F=∫ÒÏdhw×dh=ÒÏgw∫hdh=ÒÏgwh22=1000kgm39.8ms28222=1.5×105N..............2

Similarly, the force at depth h=4.0cm,

localid="1657253614722" F'=ÒÏgwh22F'1000kgm39.8ms28422=6.272×105N....................3

Therefore, the total force using equations (2) and (3) can be given as:

∆F=F'-F=6.272×105N-1.5×105N=4.69×105N

Therefore, the increase in the total force on the wall, if the aquarium is filled to a depth of2.00m, is4.69×105N

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Models of torpedoes are sometimes tested in a horizontal pipe of flowing water, much as a wind tunnel is used to test model airplanes. Consider a circular pipe of internal diameter 25.0cmand a torpedo model aligned along the long axis of the pipe. The model has a 5.00cmdiameter and is to be tested with water flowing past it at 2.50ms.

(a) With what speed must the water flow in the part of the pipe that is unconstricted by the model?

(b) What will the pressure difference be between the constricted and unconstricted parts of the pipe?

In an experiment, a rectangular block with height h is allowed to float in four separate liquids. In the first liquid, which is water, it floats fully submerged. In liquids A, B, and C, it floats with heights h/2,

2h/3, and h/4 above the liquid surface, respectively. What are the relative densities (the densities relative to that of water) of (a) A, (b) B, and (c) C?

Figure 14-48 shows an iron ball suspended by thread of negligible mass from an upright cylinder that floats partially submerged in water. The cylinder has a height of6.00 cm, a face area of12.0cm2on the top and bottom, and a density of 0.3g/cm3, and 2.00 cmof its height is above the water surface. What is the radius of the iron ball?

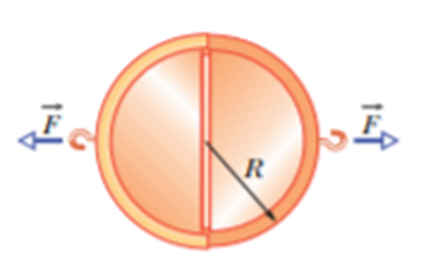

In 1654 Otto von Guericke, inventor of the air pump, gave a demonstration before the noblemen of the Holy Roman Empire in which two teams of eight horses could not pull apart two evacuated brass hemispheres. (a) Assuming the hemispheres have (strong) thin walls, so that R in Figure may be considered both the inside and outside radius, show that the force required to pull apart the hemispheres has magnitudeF=πR2∆p, where∆pis the difference between the pressures outside and inside the sphere. (b) Takingas, the inside pressure asrole="math" localid="1657253356406" 0.10atm, and the outside pressure as1.00atm,find the force magnitude the teams of horses would have had to exert to pull apart the hemispheres. (c) Explain why one team of horses could have proved the point just as well if the hemispheres were attached to a sturdy wall.

A boat floating in fresh water displaces water weighing 35.6kN. (a) What is the weight of the water this boat displaces when floating in salt water of density 1.10×103kg/m3? (b) What is the difference between the volume of fresh water displaced and the volume of salt water displaced?
