The index of refraction for water is,$n=\text{1.33}.$

Using the equation of Snell’s law and comparing the values of incident angle and refraction angle, whether the refractive index is greater or smaller can be determined. To calculate the actual value, take the values of angles from the graph.

The formula is as follows:

$n_1\sin {\mathrm{θ}}_1=n_2\sin {\mathrm{θ}}_2$

Where,

${\mathrm{θ}}_1$= angle of incidence.

${\mathrm{θ}}_2$= angle of refraction.

n₁ = index of refraction of the incident medium.

n₂ = index of refraction of the refractive medium.

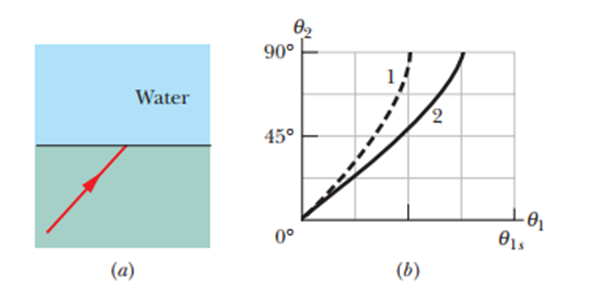

From the graph, it is observed that when light travels from material 1 to water, the angle of incidence${\mathrm{θ}}_1$is less than the angle of refraction${\text{θ}}_{\text{2}}$in water.

This implies that a light ray travels from a denser medium to a rarer medium.

Hence$n_1>n.$

From the graph, it is observed that when light travels from material 2 to water, the angle of incidence ${\text{θ}}_{\text{1}}$ is less than the angle of refraction ${\text{θ}}_{\text{2}}$ in water.

This implies that a light ray travels from a denser medium to a rarer medium.

Hence $n_2>n$.

From the graph of material 1,

${\mathrm{θ}}_2=90°$

And

${\mathrm{θ}}_1=45°$

Now use Snell’s law:

$n_1\sin {\mathrm{θ}}_1=n_2\sin {\mathrm{θ}}_2$

Here$n_1$is the refractive index of material 1,$n_2$is the refractive index of water.

Substitute the values in the above expression, and we get,

$\begin{array}{c}{n}_1\sin {90}^{∘}=1.33\sin {90}^{∘}\\ n_1=1.9\end{array}$

Hence,the value of n₁ from the graph of material 1 is$n_1=\text{1.9}$ .

From the graph of material 2,

${\mathrm{θ}}_2={90}^{∘}$

And,

${\mathrm{θ}}_1={68.25}^{°}$

Now use Snell’s law:

$n_1\sin {\mathrm{θ}}_1=n_2\sin {\mathrm{θ}}_2$

Here$n_1$is the refractive index of material 2,$n_2$is the refractive index of water.

Substitute the values in the above expression, and we get,

$\begin{array}{c}{n}_1\sin {68.25}^{∘}=1.33\sin {90}^{∘}\\ n_1=1.432\end{array}$

Hence, the value of n₁ from the graph of material 2 is $n_1=\text{1.432}$.
