High-power lasers are used to compress a plasma (a gas of charged particles) by radiation pressure. A laser generating radiation pulses with peak power 1.5×103MWis focused onto 1.00 mm2 of high-electron-density plasma. Find the pressure exerted on the plasma if the plasma reflects all the light beams directly back along their paths.

Short Answer

Expert verified

Pressure exerted on the plasma if the plasma reflects all the light beams directly back along their paths is1×107Pa

Step by step solution

01

Listing the given quantities

Power of radiation P=1.5×103MW

Area A=1.00 mm2

02

Understanding the concepts of radiation pressure formula

Substituting the given values of power, area, and speed of light in the radiation pressure formula, we can find the pressure exerted on the plasma due to the light beams.

Thrust applied on plasma is given as-

F=2IAc

Here, I is the intensity of radiation, A is the cross-sectional area and c is the speed of light in vacuum.

03

Calculations of the pressure exerted on the plasma

The force acting on the plasma, due to radiation, is-

F=2IAc

The radiation pressure Pris given as-

pr=FA=2IAcA=2Ic

The intensity is I=PA

P is power; A is the total area intercepted by the radiation.

pr=2PAc=2(1.5×109W)(1×10-6m2)(3×108″¾/s)=1×107Pa

Pressure exerted on the plasma if the plasma reflects all the light beams directly back along their paths is1×107Pa

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

One want to rotate the direction of polarization of a beam of polarized light throughby sending the beam through one or more polarizing sheets.

(a) What is the minimum number of sheets required?

(b) What is the minimum number of sheets required if the transmitted intensity is to be more than60%of the original intensity?

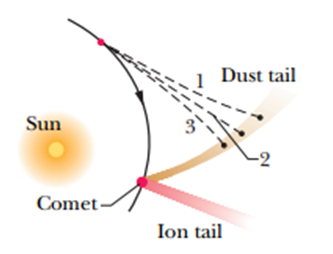

As a comet swings around the Sun, ice on the comet’s surface vaporizes, releasing trapped dust particles and ions. The ions, because they are electrically charged, are forced by the electrically charged solar wind into a straight ion tail that points radially away from the Sun (Fig. 33-39). The (electrically neutral) dust particles are pushed radially outward from the Sun by the radiation force on them from sunlight. Assume that the dust particles are spherical, have density3.5×103 k²µ/³¾3 , and are totally absorbing

.(a) What radius must a particle have in order to follow a straight path, like path 2 in the figure?

(b) If its radius is larger, does its path curve away from the Sun (like path 1) or toward the Sun (like path 3)?

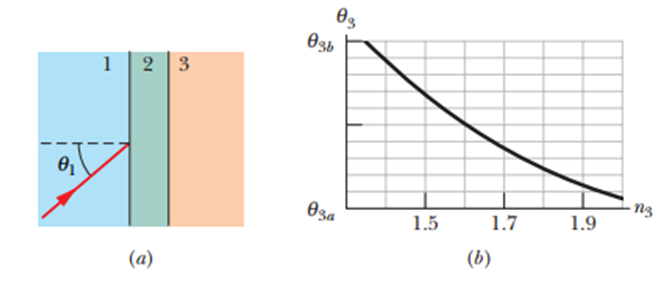

In Figure

(a), a beam of light in a material1is incident on a boundary at an angle θ1=40°. Some of the light travels through the material 2, and then some of it emerges into the material 3. The two boundaries between the three materials are parallel. The final direction of the beam depends, in part, on the index of refraction n3of the third material. Figure (b) gives the angle of refraction θ3in that material versus n3a range of possiblen3values. The vertical axis scale is set byθ3a=30.0° and θ3b=50.0°.(a) What is the indexof refraction of material , or is the index impossible to calculate without more information?

(b) What is the index of refraction of material 2, or is the index impossible to calculate without more information?

(c) It θ1is changed to 70°and the index of refraction of a material 3 is2.4 , what is θ3?

Figure:

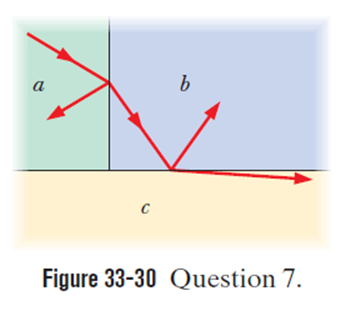

Figure 33-30 shows rays of monochromatic light propagating through three materials a, b, and c. Rank the materials according to the index of refraction, greatest first.

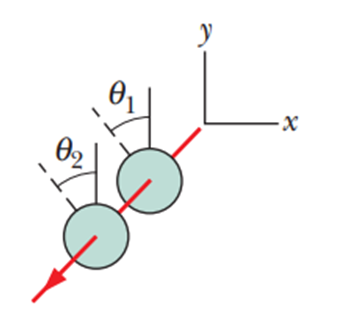

In Fig.33-41, a beam of unpolarised light, with intensity 43 W/³¾2, is sent into a system of two polarizing sheets with polarizing directions at angles θ1=70°and θ2=90°to theyaxis. What is the intensity of the light transmitted by the system?
