A 1.50μ¹ócapacitor is connected, as in the Figure to an ac generator with ∈m=30.0V. (a) What is the amplitude of the resulting alternating current if the frequency of the emf is1.00kHz? (b) What is the amplitude of the resulting alternating current if the frequency of the emf is 8.00kHz?

Short Answer

Expert verified

a). The amplitude of the resulting alternating current if the frequency of the emf has value f=1.00kHzis 0.283A.

b). The amplitude of the resulting alternating current if the frequency of the emf has value f=8.00kHzis 2.26A.

Step by step solution

01

The given data

  1. Emf of the ac generator ∈m=30.0V
  2. Series capacitance C=1.5μ¹ó=1.5×10-6F
02

Understanding the concept of capacitive reactance and Ohm’s law

As it passes through a capacitor, the obstruction offered in the path of alternating current is known as capacitive reactance. By determining the reactance due to the oscillation frequency within a capacitor, we can get the current value by substituting this value in equation of Ohm's law.

The capacitive reactance of a capacitor,

Xc=12Ï€´Ú°ä…..(¾±)

The current equation from Ohm’s law,

ic=∈mXc…..(¾±¾±)

Here, fis the frequency of oscillations, Cis the capacitance of the capacitor, and∈m is the emf applied across the circuit.

03

a) Calculation of the resulting current for frequency 1.00 kHz

For frequency f=1kHz, The capacitive reactance is given using equation (i) as follows:

Xc=12π×1×103Hz×1.5×10-6FXc=106.1Ω

Thus, using this above value in equation (ii), the value of the amplitude of the resulting alternating current is given as:

ic=30.0V0.283Ωic=0.283A

Hence, the value of the current is0.283A.

04

b) Calculation of the resulting current for frequency 8.00 kHz

For frequency f=8kHz, the capacitive reactance is given using equation (i) as follows:

Xc=12π×8×103Hz×1.5×10-6FXc=13.26Ω

Thus, using this above value in equation (ii), the value of the amplitude of the resulting alternating current is given as:

ic=30.0V13.26Ωic=2.26A

Hence, the value of the current is2.26A.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

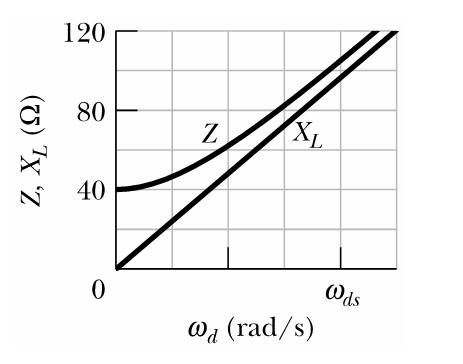

An alternating source with a variable frequency, an inductor with inductance L, and a resistor with resistance Rare connected in series. Figure gives the impedance Zof the circuit versus the driving angular frequency Ó¬d, with the horizontal axis scale set by (Ó¬d)s=1600rad/s. The figure also gives the reactance XLfor the inductor versus Ó¬d. (a) What isR? (b) What isL?
