To construct an oscillating LCsystem, you can choose from a 10mH inductor, a 5.0 µF capacitor, and a 2.0 µF capacitor. (a)What is the smallest largest oscillation frequency that can be set up by these elements in various combinations? (b)What is the second smallest largest oscillation frequency that can be set up by these elements in various combinations? (c)What is the second largest oscillation frequency that can be set up by these elements in various combinations? (d)What is the largest oscillation frequency that can be set up by these elements in various combinations?

Short Answer

Expert verified
  1. The smallest oscillation frequency is 600 Hz.
  2. The second smallest oscillation frequency is 710 Hz.
  3. The second largest oscillation frequency is 1100 Hz.
  4. The largest oscillation frequency is 1300 Hz.

Step by step solution

01

The given data

The given LC oscillating system has

  1. The inductance of the inductor,L=10mH or0.01H.
  2. The capacitance of the first capacitor,C1=5μFor5×10-6F.
  3. The capacitance of the second capacitor,C2=2μF or2×10-6F.
02

 Step 2: Understanding the concept of the oscillation frequency of LC system

Frequency is inversely proportional to the square root of the capacitor, so for a small frequency, the capacitor must be in a parallel combination. From that, we can calculate the small, second small frequency, and second-largest oscillation frequency.

Formulae:

The resonance frequency of the LC circuit, f=12Ï€LC (i)

The equivalent capacitance of a parallel combination, Ceq=∑i=1nCi (ii)

The equivalent capacitance of a series combination, Ceq=∑i=1n1Ci (iii)

03

a) Calculation of the smallest oscillation frequency.

Capacitors 1and2can be used in four different ways as

1)1, 2in parallel combination,

2) Only1

3) only2and

4)1and2in parallel combination.

For a small frequency, two capacitors must be in parallel combination so that the resultant capacitor is more as compared to any other combination. Thus, the equivalent capacitance can be given using equation (ii) as follows:

C=5+2=7×10-6F

So the smallest frequency is given using the above capacitance in equation (i) as follows:

f=12π0.01×7×10-6=12π7×10-8=601Hz≈600Hz

Hence, the smallest frequency is 600 Hz.

04

b) Calculation of the second smallest oscillation frequency

The second smallest oscillation frequency is whenC=C1.

Thus, the second smallest frequency using the capacitance value in equation (i) as follows:

f=12π0.01×5×10-6=711Hz≈710Hz

Hence, the value of the frequency is 710 Hz.

05

c) Calculation of the second largest oscillation frequency.

The second largest frequency is whenC=C2.

Thus, the second largest frequency using the capacitance value in equation (i) as follows:

f=12π0.01×2×10-6=1125Hz≈1100Hz

Hence, the value of frequency is 1100 Hz.

06

d) Calculation of the largest oscillation frequency

The largest frequency is when the capacitor is in series combination so the resultant capacitor is given using equation (iii) as follows:

C=C1C2C1+C2=5×25+2=107=1.42μF=1.42×10-6F

Thus, the largest frequency using the capacitance value in equation (i) as follows:

f=12π0.01×1.42×10-6=1335Hz≈1300Hz

Hence, the value of frequency is 1300 Hz.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

An alternating emf source with a certain emf amplitude is connected, in turn, to a resistor, a capacitor, and then an inductor. Once connected to one of the devices, the driving frequency fdis varied and the amplitude Iof the resulting current through the device is measured and plotted. Which of the three plots in Fig. 31-22 corresponds to which of the three devices?

A generator of frequency 3000Hzdrives a series RLC circuit with an emf amplitude of120V.The resistance islocalid="1662984209739" 40Ohm, the capacitance is1.60μ¹ó, and the inductance is850μ±á. What are (a) the phase constant in radians and (b) the current amplitude? (c) Is the circuit capacitive, inductive, or in resonance?

Figure 31-25 shows the currentand driving emf εfor a series RLC circuit. (a) Does the current lead or lag the emf? (b) Is the circuit’s load mainly capacitive or mainly inductive? (c) Is the angular frequency Ӭdof the emf greater than or less than the natural angular frequency Ӭ?

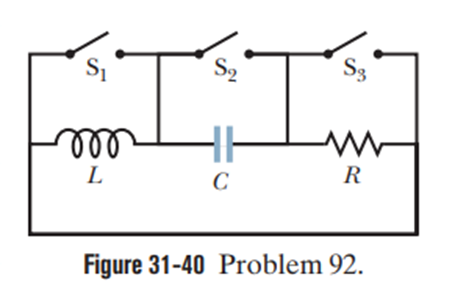

Consider the circuit shown in Fig. 31-40. With the switch S1 closed and the other two switches open, the circuit has a time constant τC. With the switch S2closed and the other two switches open, the circuit has a time constant τL . With the switch S3closed and the other two switches open, the circuit oscillates with a period T. Show that T=2πτCτL
