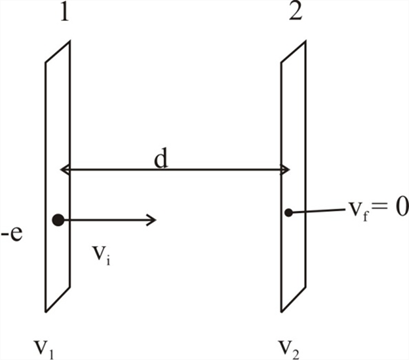

Two charged, parallel, flat conducting surfaces are spaced d=1.00cmapart and produce a potential differenceΔ³Õ=625V between them. An electron is projected from one surface directly toward the second. What is the initial speed of the electron if it stops just at the second surface?

Short Answer

Expert verified

The initial speed of the electron if it stops just at the second surface is vi=1.48×107m/s.

Step by step solution

01

Step 1: Given data:

The separation between the plates,d=1.0cm.

The potential difference, Δ³Õ=625V.

02

Determining the concept:

According tothe law of conservation of energy can neither be created nor destroyed only converted from one form of energy to another.

Formulae:

The change in potential energy is define as,

Δ±«=Δ³Õ×e

The kinetic energy is,

Δ°­=12mvi2

Where, K is kinetic energy, m is mass, U is potential energy, and v is velocity. and V is a potential difference.

03

Determining the initial speed of the electron:

Apply the Law of Conservation of Energy to get the initial speedVim/sat the first plate,

(Kf−Ki)=−Δ±«=−Δ³Õ×e

Here,

The electron charge, e=1.6×10−19C

Substitute known values in the above equation.

0−12mvi2=−625V×1.6×10−19C

Solving for vi,

vi=(625V)×(1.6×10−19C)×29.1×10−31kg=219.78×1012m2/s2=1.48×107m/s.

Hence, the initial speed of the electron is 1.48×107m/s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

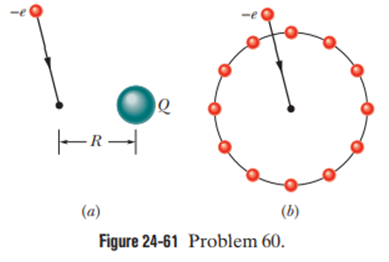

In Fig. 24-61a, we move an electron from an infinite distance to a point at distance R=8.00 cmfrom a tiny charged ball. The move requires work W= 2.16x10-13Jby us. (a) What is the charge Qon the ball? In Fig. 24-61b, the ball has been sliced up and the slices spread out so that an equal amount of charge is at the hour positions on a circular clock face of radius R=8.00 cm. Now the electron is brought from an infinite distance to the center of the circle. (b) With that addition of the electron to the system of 12 charged particles, what is the change in the electric potential energy of the system?

Question: The electric potential at points in an x-yplane is given byv=(2.0V/m2)x2-(3.0V/m2)y2. In unit-vector notation, what is the electric field at the point (role="math" localid="1662092062999" 3.0m,2.0m)?

Question: What is the escape speedfor an electron initially at rest on the surface of a sphere with a radius ofand a uniformly distributed charge of1.6×10-15C? That is, what initial speed must the electron have in order to reach an infinite distance from the sphere and have zero kinetic energy when it gets there?

(a) Using Eq. 24-32, show that the electric potential at a point on the central axis of a thin ring (of charge q and radius R ) and at distance Z from the ring is,V=14πεo⋅qR2+z2

(b) From this result, derive an expression for the electric field magnitude

E at points on the ring’s axis; compare your result with the calculation of E in Module 22-4.

Two uniformly charged, infinite, nonconducting planes are parallel to a yz plane and positioned at x = -50cmand x =+ 50cm. The charge densities on the planes are -50 nC/m2and +25 nC/m2 , respectively. What is the magnitude of the potential difference between the origin and the point on the x axis at x = +80cm ?
