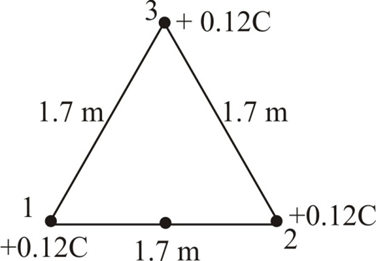

Three +0.12C charges form an equilateral triangle 1.7mon a side. Using energy supplied at the rate of 0.83kW, how many days would be required to move one of the charges to the midpoint of the line joining the other two charges?

Short Answer

Expert verified

The required time is t=2.1days

Step by step solution

01

Step 1: Given data:

After reading the question, In the equilateral triangle with sides of 1.7m,

The electrical power is,

P=dUdt=0.83KW=0.83×103W

02

Determining the concept:

Potential Energy of a system of charges and relation between power, energy and time.

Formulae:

The potential is define by,

V=14πεo⋅qR=kqR

Here,ε0is the permittivity of free space, q is the electron charge, and R is the distance, and k is the Coulomb’s constant having a value9×109Nm2/C2.

The change in potential is,

Δ±«=(Vf−Vi)q

The time is defined by,

t=Δ±«P

03

Determining the energy:

From the figure:

Initial Potential at the tip of the triangle,

Vi=kq1r+kq2r=kr(q1+q2)=(9×109Nm2/C2)(12.0C+12.0C)(1.7m)=1.27×109V

When 3rd charge bring to the midpoint between the 2 charges,

Vf=kq1r2+kq2r2=2kr(q1+q2)=2×(9×109Nm2/C2)(12.0C+12.0C)(1.7m)=2.54×109V

Therefore, the required energy is,

Δ±«=(Vf−Vi)q=(2.54×109V−1.27×109V)×12.0C=(1.34×109V)×12.0C=1.5×108J

04

Determining the required days to move point charges:

Thus the required time is,

t=Δ±«P=1.5×108J0.83×103W=(1.807×105s)1day8.64×104s=2.1days

Hence, the required time to move the point charges is 2.1days.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The thin plastic rod of length L = 10.0cmin Fig. 24-47 has a non-uniform linear charge densityλ=cx, wherec=49.9pC/m2. (a) With V= 0 at infinity, find the electric potential at point P2 on the yaxis at y = D = 3.56cm. (b) Find the electric field component at P2. (c) Why cannot the field component Exat P2 be found using the result of (a)?

A particular 12Vcar battery can send a total charge of 84 A.h(ampere-hours) through a circuit, from one terminal to the other. (a) How many coulombs of charge does this represent? (Hint:See Eq. 21-3.) (b) If this entire charge undergoes a change in electric potential of 12 V, how much energy is involved?

Suppose that in a lightning flash the potential difference between a cloud and the ground is 1.0×109Vand the quantity of charge transferred is 30 C. (a) What is the change in energy of that transferred charge? (b) If all the energy released could be used to accelerate a 1000 kgcar from rest, what would be its final speed?

Two large, parallel, conducting plates are 12 cmapart and have charges of equal magnitude and opposite sign on their facing surfaces. An electric force of 3.9 x 10-15 Nacts on an electron placed anywhere between the two plates. (Neglect fringing.) (a) Find the electric field at the position of the electron. (b) What is the potential difference between the plates?

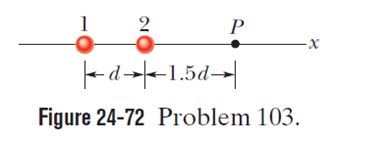

In Fig. 24-72, two particles of charges q1and q2are fixed to an x-axis. If a third particle, of charge+6.0μ°ä, is brought from an infinite distance to point P, the three-particle system has the same electric potential energy as the original two-particle system. What is the charge ratioq1/q2?
