Humid air brakes down (its molecules become ionized) in an electric field of3.0×106 N/°ä. In that field, what is the magnitude of the electrostatic force on (a) an electron and (b) an ion with a single electron missing?

Short Answer

Expert verified
  1. The magnitude of the electrostatic force on an electron is4.8×10−13 N
  2. The magnitude of the force on an ion with a single electron missing is4.8×10−13N

Step by step solution

01

The given data

  • The given electric field,E=3.0×106 N/°ä
02

Understanding the concept of electric field

When a charged particle is placed in an electric field, it experiences a electrostatic force that is equal to the product of its charge and electric field.

Using the concept of force to the electric field, we can get the magnitude of force for the given cases.

Formula:

The magnitude of the electrostatic force on a point charge can be given by,

F=qE (i)

where E is the magnitude of the electric field at the location of the particle.

03

a) Calculation of the electrostatic force on an electron

Using equation (i), the force on an electron is given as:

Fe=(1.60×10−19 C)(3.0×106 N/°ä)=4.8×10−13 N

Hence, the value of the force is

04

b) Calculation of the force on an ion

Using the given data in equation (i), the electrostatic force on an ion having single electron missing is given as:

Fi=(1.60×10−19 C)(3.0×106 N/°ä)=4.8×10−13 N

Hence, the value of the force is4.8×10−13 N

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Figure 22-25 shows four situations in which four charged particles are evenly spaced to the left and right of a central point. The charge values are indicated. Rank the situations according to the magnitude of the net electric field at the central point, greatest first.

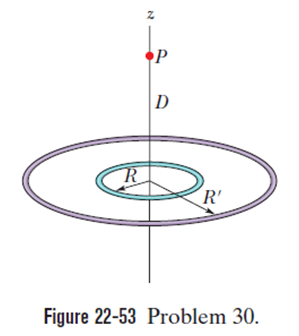

Figure 22-53 shows two concentric rings, of radiiRand,3.00R that lie on the same plane. Point Plies on the centralZ axis, at distance D=2.00Rfrom the center of the rings. The smaller ring has uniformly distributed charge+Q. In terms of Q, what is the uniformly distributed charge on the larger ring if the net electric field at Pis zero?
