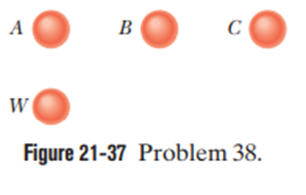

Figure 21-37 shows four identical conducting spheres that are actually well separated from one another. Sphere W(with an initial charge of zero) is touched to sphere Aand then they are separated. Next, sphere Wis touched to sphere B(with an initial charge of32e) and then they are separated. Finally, sphere Wis touched to sphere C(with an initial charge of48e), and then they are separated. The final charge on sphere Wis18e.What was the initial charge on sphere A?

Short Answer

Expert verified

The initial charge on the sphere A is+16e

Step by step solution

01

The given data

  1. Initial Charge of sphere W = 0
  2. Initial charge of sphere B = -32e
  3. Charge of sphere C = +48e
  4. Final charge on sphere W = +18e
02

Understanding the concept of Coulomb’s law

According to the properties of a conductor, the charge flows easily through its body. Hence upon making contact with another conductor, the total charge of the system gets split in half between them. This verifies the conservation of charge property. Using this concept, the charge of the sphere can be found.

03

Calculation of the initial charge of sphere A

As a result of the first action, both sphere W and sphere A possess charge,12qA, whereqAis the initial charge of sphere A.

As a result of the second action, sphere W has now charge, 12qA232e

As a result of the final action, sphere W now has charge equal to:

1212qA232e+48e..........................(a)

Now, we have been given that the final charge of sphere is +18e.

Hence, equating value of final charge from equation (a) to the given final charge, we can get the value of the initial charge of sphere A as:

1212qA232e+48e=+18eqA=+16e.

Hence, the value of charge of sphere A is+16e

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 21-39, two tiny conducting balls of identical mass mand identical charge hang from non-conducting threads of length L. Assume that u is so small that tan u can be replaced by its approximate equal, sin u.

(a) Show thatx=(q2L20mg)1/3gives the equilibrium separation xof the balls.

(b) If L=120cm,and, x=5.0cmwhat is|q|?

The magnitude of the electrostatic force between two identical ions that are separated by a distance of 5.010-10mis3.710-9N. (a) What is the charge of each ion? (b) How many electrons are 鈥渕issing鈥 from each ion (thus giving the ion its charge imbalance)?

Figure 21-17 shows four arrangements of charged particles. Rank the arrangements according to the magnitude of the net electrostatic force on the particle with charge+Q, greatest first.

The initial charges on the three identical metal spheres in Fig. 21-24 are the following: sphere A, Q; sphere B, Q/4; and sphere C, Q/2, where Q=2.001014C. Spheres Aand Bare fixed in place, with a center-to-center separation of d=1.20m, which is much larger than the spheres. Sphere Cis touched first to sphere Aand then to sphere Band is then removed. What then is the magnitude of the electrostatic force between spheres Aand B?

Question: In Fig. 21-41, three identical conducting spheres form an equilateral triangle of side length d=20.0 cm. The sphere radii are much smaller thand, and the sphere charges are, qA=-2.00nC,qB=-4.00nC,andqc=+8.00nC.

(a) What is the magnitude of the electrostatic force between spheresAandC?

The following steps are then taken:AandBare connected by a thin wire andthen disconnected;Bis grounded by the wire, and the wire is then removed;BandCare connected by the wire and then disconnected. What now are the magnitudes of the electrostatic force (b) between spheresAandCand (c) between spheresBandC?
