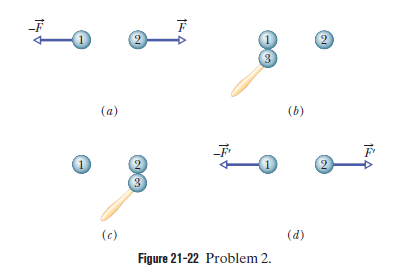

Identical isolated conducting spheres 1 and 2 have equal charges and are separated by a distance that is large compared with their diameters (Fig. 21-22a). The electrostatic force acting on sphere 2 due to sphere 1 isF→.Suppose now that a third identical sphere 3, having an insulating handle and initially neutral, is touched first to sphere 1 (Fig. 21-22b), then to sphere 2 (Fig. 21-22c), and finally removed (Fig. 21-22d). The electrostatic force that now acts on sphere 2 has magnitudeF'. What is the ratioF'/F?

Short Answer

Expert verified

Answer:

The value of the ratio F'/Fis 0.375 .

Step by step solution

01

The given data

  1. Two identical spheres 1 and 2 are separated by a distancer≫diameter.
  2. Electrostatic force on sphere 2 due to sphere 1 is F⇶Ä.
  3. The new electrostatic force on sphere 2 due to sphere 1 isF' .
02

 Step 2: Understanding the concept of charge by conduction

Conduction is the process in which an uncharged body is charged by bringing it in contact with the charged body. Here, when two identical spheres are brought in together, the net charge of the system is equally distributed among them. Using this theory, the charge on each sphere is calculated, and then using the electrostatic force formula, we can get the magnitude of the forces in both cases.

The electrostatic force of attraction or repulsion on a body by another charged body according to Coulomb’s law,

F=kq1q2r2 (i)

Here, q1 and q2 are the charges on each sphere and is the separation between them.

03

Calculation of the ratio of the two forces

Let,q be the charge on sphere 1 and 2.

For the first case, the electrostatic force on sphere 2 by sphere 1 can be given using equation (i) as follows:

F=kq2r2.....................(a)

Now, for the second case, when the neutral sphere 3 is brought into contact with sphere 1 having charge q, they both acquire charge q/2 as per the concept. Now, when the sphere 3 with charge q/2 is brought into contact with sphere 2 with charge q , the charge acquired by sphere 2 and 3 will be given as:

q+q/22=3q4

Now, the force on sphere 2 by sphere 1 can be given using equation (i) as follows:

role="math" F'=kq/23q/4r2=3kq28r2...................(b)

Thus, using values from equations (a) and (b), the ratio of the forces can be given as:

role="math" localid="1661870975624" F'F=3kq28r2kq2r2=38=0.375

Hence, the required ratio is 0.375.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

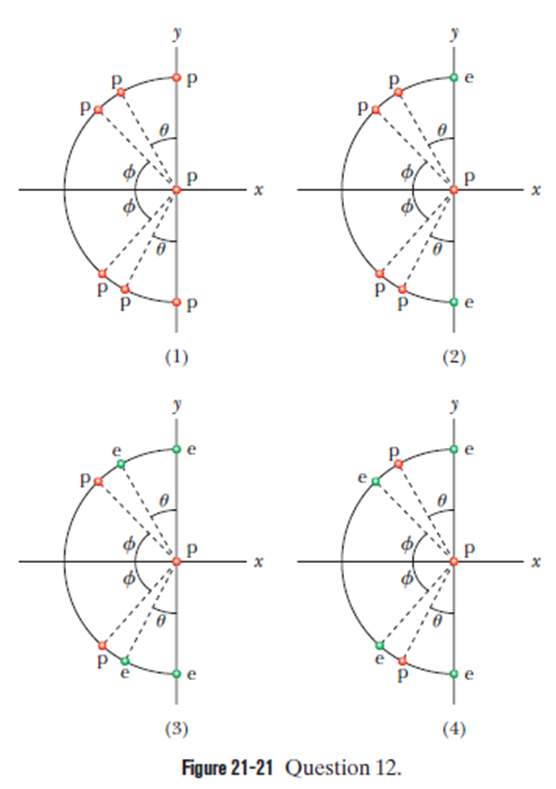

Figure 21-21 shows four situations in which a central proton is partially surrounded by protons or electrons fixed in place along a half-circle. The anglesθare identical; the anglesareϕ also. (a) In each situation, what is the direction of the net force on the central proton due to the other particles? (b) Rank the four situations according to the magnitude of that net force on the central proton, greatest first.

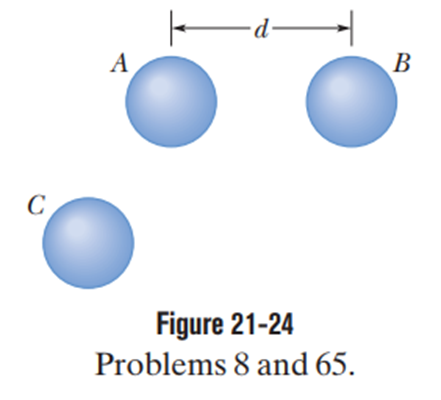

In Fig. 21-24, three identical conducting spheres initially have the following charges: sphere A,4Q ; sphere B,−6Q ; and sphere C,0 . Spheres Aand Bare fixed in place, with a center-to-center separation that is much larger than the spheres. Two experiments are conducted. In experiment 1, sphere Cis touched to sphere Aand then (separately) to sphere B, and then it is removed. In experiment 2, starting with the same initial states, the procedure is reversed: Sphere Cis touched to sphere Band then (separately) to sphere A, and then it is removed. What is the ratio of the electrostatic force between Aand Bat the end of experiment 2 to that at the end of experiment 1?

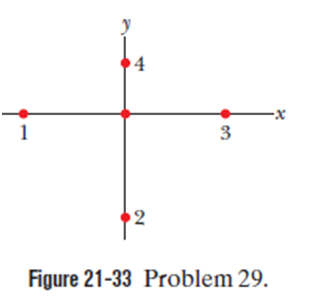

In Fig. 21-33, particles 2 and 4, of charge -e, are fixed in place on a yaxis, aty2=-10.0cmand y4=5.0cm. Particles 1 and 3, of charge -e, can be moved along the xaxis. Particle 5, of charge, is fixed at the origin. Initially particle 1 is at x1=-10.0cmand particle 3 is at. x3=-10.0cm (a) To what xvalue must particle 1 be moved to rotate the direction of the net electric forcef→neton particle 5 by 30°counterclockwise ? (b) With particle 1 fixed at its new position, to what xvalue must you move particle 3 to rotate f→net
back to its original direction?

A non-conducting spherical shell, with an inner radius of 4.0 c³¾and an outer radius of 6.0 c³¾, has charge spread non-uniformly through its volume between its inner and outer surfaces. The volume charge densityÒÏ is the charge per unit volume, with the unit coulomb per cubic meter. For this shell ÒÏ=b/r, wherer is the distance in meters from the center of the shell andb=3.0‰ӼC/m2 .What is the net charge in the shell?

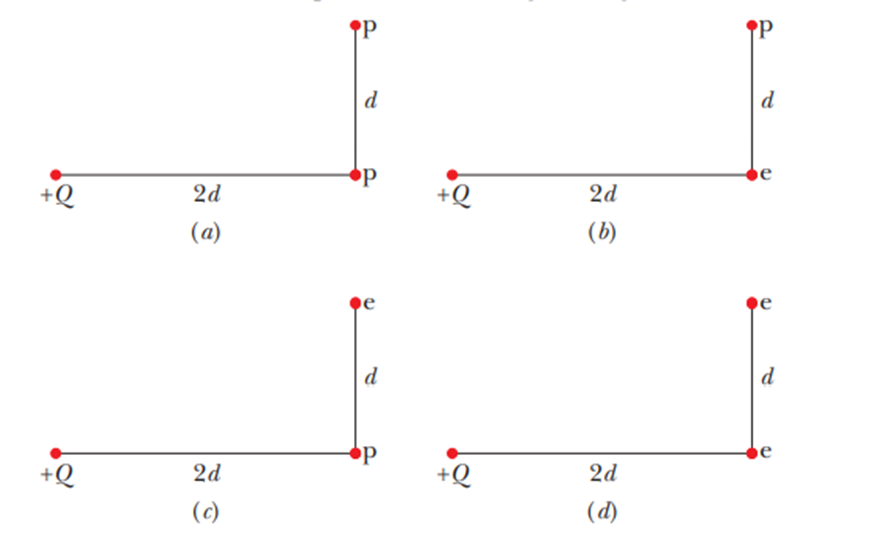

Figure 21-17 shows four arrangements of charged particles. Rank the arrangements according to the magnitude of the net electrostatic force on the particle with charge+Q, greatest first.
