Charges of the particles,$q_2=+8.00×{10}^{-19}C,and{q}_3=q_4=-1.60×{10}^{-19}C$, and

Four particles are maintained at an angle $\mathrm{θ}=30.0°$and distance, d = 2.00 cm

Using the same concept of Coulomb's law, we can get an equation for the condition of the net force on particle 1 as zero. Thus, this will determine the distance of the particle from its origin. Again, using the same concept, we can compare the value of the distance.

Formula:

The magnitude of the electrostatic force between any two particles,

$F=K\frac{\left|q_1\right|\left|q_2\right|\cos \mathrm{θ}}{r^2}$

(1)

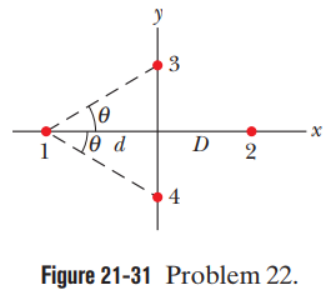

We note that $\cos (30°)=\frac{\sqrt{3}}{2}$so that the dashed line distance in figure 21-31, the separation between the particles 1 and 3 or particles 1 and 4, $r=\frac{2d}{\sqrt{3}}$The net force on the charge $q_1$due to charges $q_{3}and{q}_4(with{q}_3=q_4=-1.60×{10}^{-19}C)$onthe y -axis has magnitude using the equation as:

$$\begin{gathered} F_1=F_3+F_4 \\ =2\frac{\left|q_1{q}_3\right|}{4\mathrm{Ï€}{\mathrm{Î\mu }}_0}\cos (30°) \\ =\frac{3\sqrt{3}\left|q_1{q}_3\right|}{16\mathrm{Ï€}{\mathrm{Î\mu }}_0{d}^2} \end{gathered}$$

This must be set equal to the magnitude of the force exerted on $q_1$by $q_2=+8.00×{10}^{-19}C$so that its net force is zero. Thus, using the same equation (1), it is given as:

$$\begin{gathered} \frac{3\sqrt{3}\left|q_1{q}_3\right|}{16\mathrm{Ï€}{\mathrm{Î\mu }}_0{d}^2}=\frac{\left|q_1{q}_2\right|}{4\mathrm{Ï€}{\mathrm{Î\mu }}_0{\left(D+d\right)}^2} \\ D=d\left(2\sqrt{\frac{5}{3\sqrt{3}}}-1\right) \\ D=0.96×2cm \\ D=1.92cm \end{gathered}$$

.

Hence, the value of the distance, D is 1.92 cm.

As the angle decreases, its cosine increases, resulting in a larger contribution from the charges on the y axis. To offset this, the force exerted by $q_2$must be made
stronger, so that it must be brought closer to$q_1$ (keep in mind that Coulomb’s law is inversely proportional to distance-squared). Thus, D must be decreased.
