A stone is dropped att=0. A second stone, with twice the mass of the first, is dropped from the same point atrole="math" localid="1654342252844" t=100ms. (a) How far below the release point is the centre of mass of the two stones att=300ms? (Neither stone has yet reached the ground.) (b) How fast is the centre of mass of the two stone systems moving at that time?

Short Answer

Expert verified
  1. Centre of mass of two stones att=300msis0.28m.

  2. The velocity of the center of those two stones att=300msis 2.3m/s.

Step by step solution

01

Given data

First stone is dropped at,t=0sec

Second stone is dropped at,t=100ms

Mass of second stone is twice the mass of first stone.

02

Understanding the concept of center of mass

For a system of particles, the whole mass of the system is concentrated at the center of mass of the system.

The expression for the coordinates of the center of mass are given as:

r⇶Äcom=1M∑i=1nmiri … (i)

Here,Mis the total mass,miis the individual mass of ith particle andriis the coordinates of ith particle.

The expression for kinematic equations of motion in vertical direction are given as:

localid="1654344116642" v=v0+gt … (ii)

y=v0t+12gt2 … (iii)

Here,v0is the initial velocity,vis the final velocity,sis the distance,ais the acceleration andtis the time.

03

(a) Determination of the centre of mass of two stones at

The initial velocity for both the stones is zero.

Using equation (iii), the height of first stone is,

y1=v0t+12gt21=0+12(9.8m/s2)(0.3s)2 =0.441m

Since the second stone is dropped after 100 ms, thent2=0.2s

Using equation (iii), the height of second stone is,

y2=v0t+12gt22=0+12(9.8m/s2)(0.2s)2=0.196m

Now, using equation (i), the center of mass of two stones is,

ycom=m1y1+m2y2m1+m2=m1y1+2m1y2m1+2m1=(y1+2y2)3

Substitute the values in the above expression.

role="math" localid="1654594305615" ycom=0.441m+2×0.196m3=0.277m≈0.28m

Thus, the center of mass of two stones att=300msis0.28ms.

04

(b) Determination of the velocity of Centre of mass of those two stones att=300ms

Using equation (ii), the velocity of first stone is,

v1=v01+gt=0+(9.8m/s2)(0.3s)=2.94m/s

Using equation (ii), the velocity of second stone is,

v2=v02+gt=0+(9.8m/s2)(0.2s)=1.96m/s

Now, by using center of mass formula we get

vcom=(m1v1+m2v2)m1+m2=v1+2v23=(2.94)+2(1.96)3=2.287m/s=2.3m/s

Thus, the velocity of the center of mass is2.3m/s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

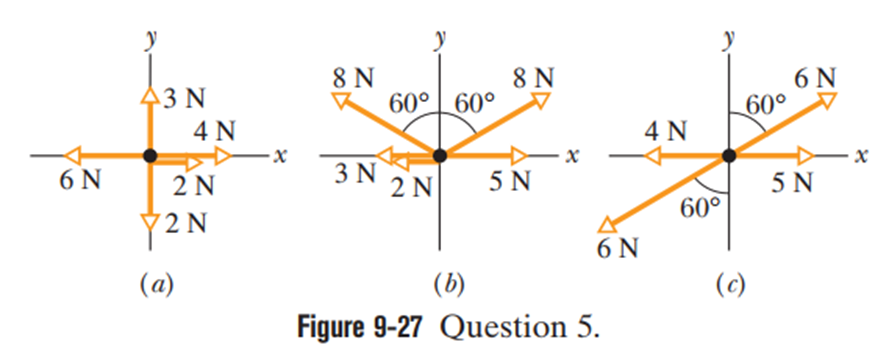

The free-body diagrams in Fig. 9-27 give, from overhead views, the horizontal forces acting on three boxes of chocolates as the boxes move over a frictionless confectioner’s counter. For each box, is its linear momentum conserved along the x-axis and the y-axis?

Figure 9-32: A block on a horizontal floor is initially either stationary, sliding in the positive direction of an x-axis, or sliding in the negative direction of that axis. Then the block explodes into two pieces that slide along the x-axis. Assume the block and the two pieces form a closed, isolated system. Six choices for a graph of the momenta of the block and the pieces are given, all versus time t. Determine which choices represent physically impossible situations and explain why.

Basilisk lizards can run across the top of a water surface (Figure 9-52). With each step, a lizard first slaps its foot against the water and then pushes it down into the water rapidly enough to form an air cavity around the top of the foot. To avoid having to pull the foot back up against water drag in order to complete the step, the lizard withdraws the foot before water can flow into the air cavity. If the lizard is not to sink, the average upward impulse on the lizard during this full action of slap, downward push, and withdrawal must match the downward impulse due to the gravitational force. Suppose the mass of a basilisk lizard is 9.00 g, the mass of each foot is 3.00 g , the speed of a foot as it slaps the water is 1.50 m/s , and the time for a single step is 0.600 s .(a) What is the magnitude of the impulse on the lizard during the slap? (Assume this impulse is directly upward.) (b) During the 0.600 sduration of a step, what is the downward impulse on the lizard due to the gravitational force? (c) Which action, the slap or the push, provides the primary support for the lizard, or are they approximately equal in their support?

Speed de amplifier.In Fig. 9-74, block 1 of mass m1 slides along an xaxis on a frictionless floor at speed 4.00 m/s. Then it undergoes a one-dimensional elastic collision with stationary block 2 of massm2=2.00m. Next, block 2 undergoes a one-dimensional elastic collision with stationary block 3 of massm3=2.00m2. (a) What then is the speed of block 3? Are (b) the speed, (c) the kinetic energy, and (d) the momentum of block 3 is greater than, less than, or the same as that of the initial values for block 1?

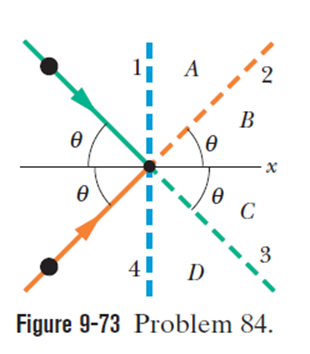

Figure 9-73 shows an overhead view of two particles sliding at constant velocity over a frictionless surface. The particles have the same mass and the same initial speed V = 4.00 m/s, and they collide where their paths intersect. An xaxis is arranged to bisect the angle between their incoming paths, such thatθ=40.0°. The region to the right of the collision is divided into four lettered sections by the xaxis and four numbered dashed lines. In what region or along what line do the particles travel if the collision is (a) completely inelastic, (b) elastic, and (c) inelastic? What are their final speeds if the collision is (d) completely inelastic and (e) elastic?
