In Fig. 9-64, block A (mass 1.6 kg)slides into block B (mass 2.4 kg), along a frictionless surface. The directions of three velocities before (i) and after (f) the collision are indicated; the corresponding speeds are vAi=5.5m/s, vBi=2.5m/s, and vBf=4.9m/s. What are the (a) speed and (b) direction (left or right) of velocity v→AF? (c) Is the collision elastic?

Short Answer

Expert verified

a) The value of speed is 1.9 m/s

b) Direction of the block is toward the right.

c) The collision is found to be elastic

Step by step solution

01

Listing the given quantities

vBf=4.9m/svBi=2.5m/svAi=5.5m/smA(massoftheblockA)=1.6kgmB(massoftheblockB)=2.4kg

02

Understanding the concept of law of conservation of momentum

Let mA be the massof the block A on the left, vAi be its initial velocity and vAfbe its final velocity. Let mB be the mass of the block B on the right, vBi be its initial velocity and vBfbe its final velocity. The momentum of the two-block system is conserved.

Formula:

Initial momentum= Final momentum.

mAvAi+mBvBi=mAvAf+mBvBf

03

 Calculation of the value of speed

(a)

vAf=mAvAi+mBvBi-mBvBfmA=1.6kg(5.5m/s)+2.4kg(2.5m/s)-2.4kg(4.9m/s)1.6kg=1.9m/s

04

 Explanation

(b) The block continues going to the right after the collision.

05

Calculations for the type of collision

(c)

To see whether the collision is elastic, we compare the total kinetic energy before the collision with the total kinetic energy after the collision. The total kinetic energy before is

Ki=12mAvAi2+12mBvBi2=121.6kg5.5m/s2+122.4kg2.5m/s2=31.7J

The total kinetic energy after is

Kf=12mAvAf2+12mBvBf2=121.6kg1.9m/s2+122.4kg4.9m/s2=31.7J

SinceKi andKf are equal, the collision is found to be elastic.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

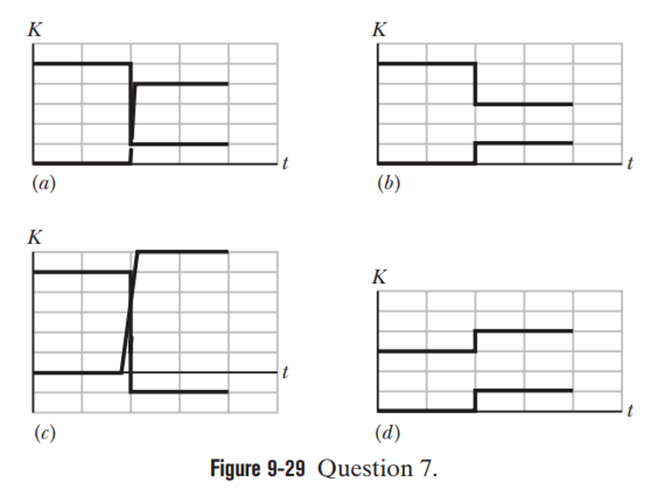

A block slides along a frictionless floor and into a stationary second block with the same mass. Figure 9-29 shows four choices for a graph of the kinetic energies Kof the blocks. (a) Determine which represent physically impossible situations. Of the others, which best represents (b) an elastic collision and (c) an inelastic collision?

A 91 kgman lying on a surface of negligible friction shoves a 68 g stone away from himself, giving it a speed of4.0 m/s. What speed does the man acquire as a result?

Consider a rocket that is in deep space and at rest relative to an inertial reference frame. The rocket’s engine is to be fired for a certain interval. What must be the rocket’s mass ratio (ratio of initial to final mass) over that interval if the rocket’s original speed relative to the inertial frame is to be equal to (a) the exhaust speed (speed of the exhaust products relative to the rocket) and (b)2.0times the exhaust speed?

An unmanned space probe (of mass mand speed vrelative to the Sun) approaches the planet Jupiter (of mass Mand speed VJrelative to the Sun) as shown in Fig. 9-84. The spacecraft rounds the planet and departs in the opposite direction. What is its speed (in kilometers per second), relative to the Sun, after this slingshot encounter, which can be analyzed as a collision? Assume v=10.5kmsand VJ=13.0kms(the orbital speed of Jupiter).The mass of Jupiter is very much greater than the mass of the spacecraft (M ≫m).

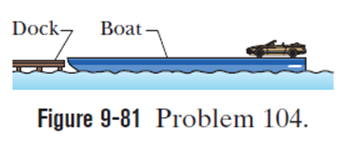

The script for an action movie calls for a small race car (of mass 1500 Kgand length 3.0 m ) to accelerate along a flattop boat (of mass 4000 kgand length 14 m), from one end of the boat to the other, where the car will then jump the gap between the boat and a somewhat lower dock. You are the technical advisor for the movie. The boat will initially touch the dock, as in Fig. 9-81; the boat can slide through the water without significant resistance; both the car and the boat can be approximated as uniform in their mass distribution. Determine what the width of the gap will be just as the car is about to make the jump.
