Chapter 8: Q. 8.10 (page 337)

Problem 8.10. Use a computer to calculate and plot the second virial coefficient for a gas of molecules interacting via the Lennard-Jones potential, for values of kT/u0 ranging from 1to 7. On the same graph, plot the data for nitrogen given in Problem 1.17, choosing the parameters r0 and u0so as to obtain a good fit.

Short Answer

Expert verified

The value of the parameter u0=0.008eV

And r0=3.0脳10-10m

The data for nitrogen is fitted with the plot after the second virial coefficient for gas of molecules is calculated and plotted.

Step by step solution

01

Given information

A gas of molecules interacting via the Lennard-Jones potential, for values of kT/u0ranging from 1 to 7.

02

Explanation

Compute the second virial coefficient's expressionB as:
B(T)=-2蟺鈭�0鈭�e-u(r)dT-1r2dr

Where, u(r)denotes Lennard Jones potential,

Tdenotes temperature of gas

kindicates Boltzmann constant.

Calculate the expression of Lennard Jones potential as:
u(r)=u0r0r12-2r0r6
Note that, u0and, r0 are constants.

Then rindicates the radial distance.

03

Explanation

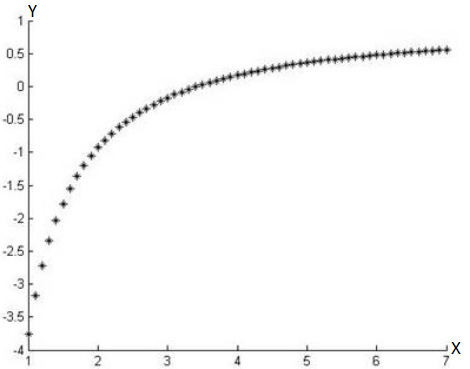

Construct a graph to plot the second virial coefficient Balong yaxis and kTu0along xaxis:

04

Explanation

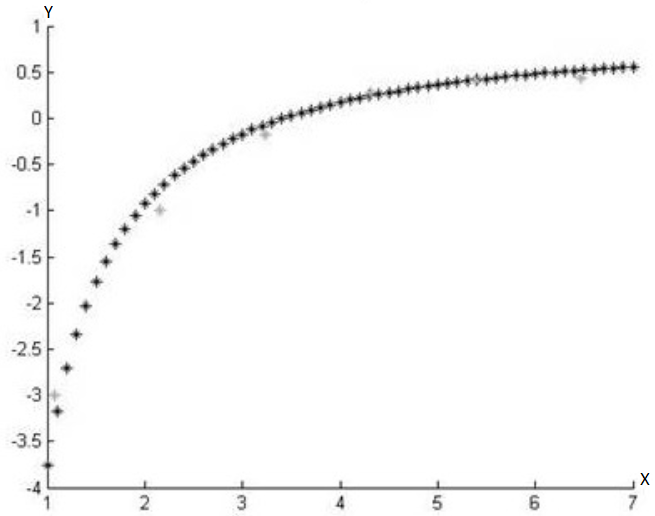

Construct a graph to fit the above plot of nitrogen data from problem 1.17 with u0set at 0.008eVand r0set at 3.0脳10-10m:

Fitted nitrogen data are represented by faded dots.
In order to fit Nitrogen data with the plot, the second virial coefficient for gas molecules is calculated.
