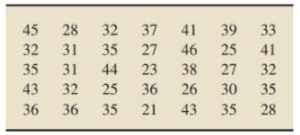

The U.S. Department of Agriculture reports in Food Consumption, Prices, and Expenditures that the average American consumed about 33.5lbof cheese in 2011. Cheese consumption has increased steadily since 1960 , when the average American ate only 8.3lbof cheese annually. The following table provides last year's cheese consumption, in pounds, for 35 randomly selected Americans. Use limit grouping with a first class of 20-22and a class width of 3 .

a. determine a frequency distribution.

b. obtain a relative-frequency distribution.

c. construct a frequency histogram based on your result from part (a).

d. construct a relative-frequency histogram based on your result from part (b).

Short Answer

Expert verified

(a)

Class limitFrequency20-22123-25326-28529-31332-34536-37938-40241-43444-463Total35

(b)

role="math" localid="1652981764033" Class limitsFrequencyRelativefrequency20-2211/35=0.028623-2533/35=0.085726-2855/35=0.142929-3133/35=0.085732-3455/35=0.142935-3799/35=0.257138-4022/35=0.057141-4344/35=0.114344-4633/35=0.0857Total35=1

(c)

(d)

Step by step solution

01

Part (a)Step 1: Given information

Given in the question that, The U.S. Department of Agriculture reports in Food Consumption, Prices, and Expenditures that the average American consumed about $33.5 \mathrm{lb}$ of cheese in 2011. Cheese consumption has increased steadily since 1960 , when the average American ate only $8.3 \mathrm{lb}$ of cheese annually. The following table provides last year's cheese consumption, in pounds, for 35 randomly selected Americans. Use limit grouping with a first class of $20-22$ and a class width of 3 .

We need to determine a frequency distribution.

02

Part(a) Step 2: Explanation

the given data is,

The number of values that fall between the class's bounds is the frequency.

The data's frequency distribution is as follows:

Class limitFrequency20-22123-25326-28529-31332-34536-37938-40241-43444-463Total35

03

Part(b) Step 1: Given information

Given in the question that, The U.S. Department of Agriculture reports in Food Consumption, Prices, and Expenditures that the average American consumed about 33.5lbof cheese in 2011. Cheese consumption has increased steadily since 1960 , when the average American ate only 8.3lbof cheese annually. The following table provides last year's cheese consumption, in pounds, for 35 randomly selected Americans. Use limit grouping with a first class of 20-22and a class width of 3 .

We need to obtain a relative-frequency distribution.

04

Part (b) Step 2: Explanation

the given data is,

The frequency is divided by the overall frequency to get the relative frequency.

The data's relative frequency distribution is as follows:

Class limitsFrequencyRelativefrequency20-2211/35=0.028623-2533/35=0.085726-2855/35=0.142929-3133/35=0.085732-3455/35=0.142935-3799/35=0.257138-4022/35=0.057141-4344/35=0.114344-4633/35=0.0857Total35=1

05

Part(c) Step 1: Given information

Given in the question that, The U.S. Department of Agriculture reports in Food Consumption, Prices, and Expenditures that the average American consumed about 33.5lbof cheese in 2011. Cheese consumption has increased steadily since 1960 , when the average American ate only 8.3lbof cheese annually. The following table provides last year's cheese consumption, in pounds, for 35 randomly selected Americans. Use limit grouping with a first class of 20-22and a class width of 3 .

We need to construct a frequency histogram based on the result from part (a)

06

Part(c) Step 2: Explanation

The given data is,

On a horizontal axis, the histogram shows the quantitative data classes, and on a vertical axis, the frequencies of those classes.

The bars must be of the same width and must be bordered by the lower class limits.

The frequency must be represented by the height of the bars.

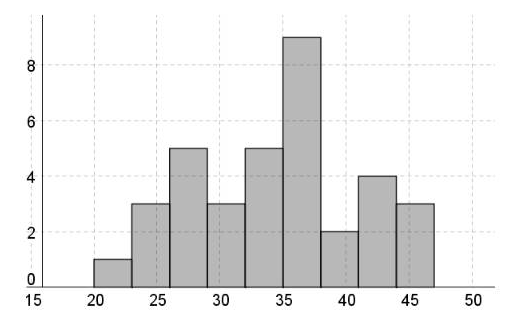

The frequency distribution histogram is shown below:

07

Part(d) Step 1: Given information

Given in the question that, The U.S. Department of Agriculture reports in Food Consumption, Prices, and Expenditures that the average American consumed about33.5lbof cheese in 2011. Cheese consumption has increased steadily since 1960 , when the average American ate only 8.3lbof cheese annually. The following table provides last year's cheese consumption, in pounds, for 35 randomly selected Americans. Use limit grouping with a first class of 20-22and a class width of 3 .

We need to construct a relative-frequency histogram based on the result from part (b)

08

Part(d) Step 2: Explanation

The given data is,

On a horizontal axis, the histogram shows the quantitative data classes, and on a vertical axis, the frequencies of those classes.

The bars must all be the same width and must be bordered by the lower class limitations.

The frequency must be represented by the height of the bars.

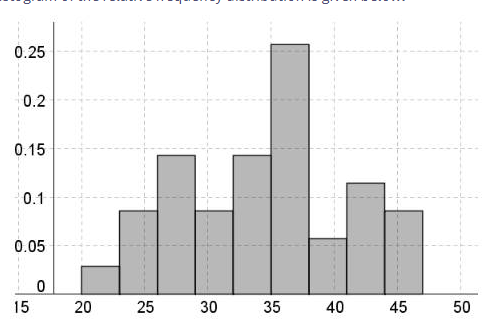

The relative frequency distribution histogram is shown below:

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

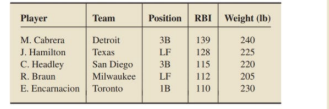

RBI Kings, As reported on MLB.com, the five players with the highest runs batted in (RBI) during the 2012 Major League Baseball season are listed in the following table. Also included are the teams for which they played, their positions, and their weights. Identify the type of data provided by the information in each column of the table.

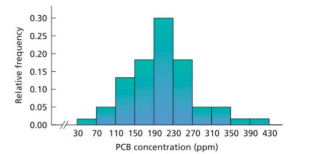

PCBs and Pelicans. Polychlorinated biphenyls (PCBs), industrial pollutants, are known to be carcinogens and a great danger to natural ecosystems. As a result of several studies, PCB production was banned in the United States in 1979 and by the Stockholm Convention on Persistent Organic Pollutants in 2001. One study, published in 1972 by R. W. Risebrough, is titled "Effects of Environmental Pollutants Upon Animals Other Than Man" (Proceedings of the 6ed Berkeley Symposium on Mathematics and Statistics, VI, University of California Press, pp. 443-463). In that study, 60 Anacapa pelican eggs were collected and measured for their shell thickness, in millimeters (mm), and concentration of PCBs, in parts per million (ppm). Following is a relative-frequency histogram of the PCB concentration data.
