Given data:

Frequency distribution is calculated as,

$\begin{array}{|cc|}\hline \text{Limit grouping classes}& \text{Frequency}\\ 0-9& 3\\ 10-19& 3\\ 20-29& 5\\ 30-39& 8\\ 40-49& 1\\ \text{Total}& 20\\ \hline\end{array}$

Given data:

The relative frequency distribution is computed as follows:

$\text{Relative Frequency}=\frac{\text{Frequency}}{\text{Numberofobservations}}$

$\begin{array}{|ccc|}\hline \text{Limit grouping classes}& \text{Frequency}& \text{Relative Frequency}\\ 0-9& 3& \frac{3}{20}=0.5\\ 10-19& 3& \frac{3}{20}=0.5\\ 20-29& 5& \frac{5}{20}=0.25\\ 30-39& 8& \frac{8}{20}=0.40\\ 40-49& 1& \frac{1}{20}=0.05\\ \text{Total}& 20& \\ \hline\end{array}$

Given data:

MINITAB is used to generate the frequency histogram.

The following is the technique for obtaining a frequency histogram:

• Navigate to Graph>Histogram.
• Click OK after selecting Simple.
• Click OK after entering the matching column of DATA in Graph variables.

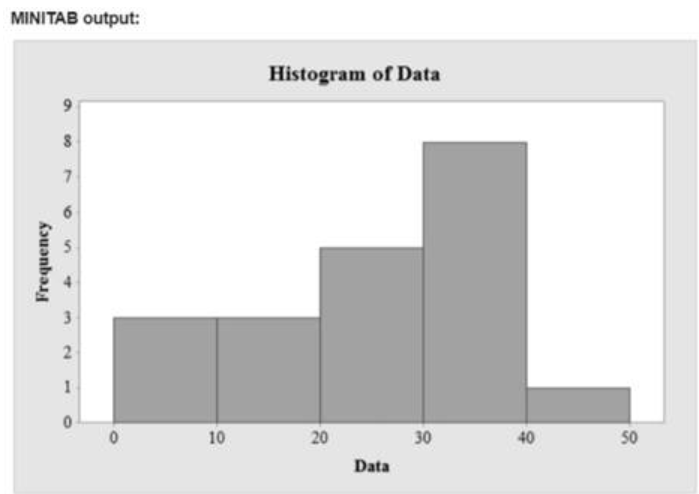

The output of MINITAB is displayed below.

Given data:

MINITAB is used to generate the relative frequency histogram.

The following is the technique for obtaining a frequency histogram:

• Navigate to Graph>Histogram.
• Click OK after selecting Simple.
• In the Graph variables section, enter the corresponding DATA column.
• Go to Vertical Axis and select TYPE TAB.
• Choose Percentage
• Click OK

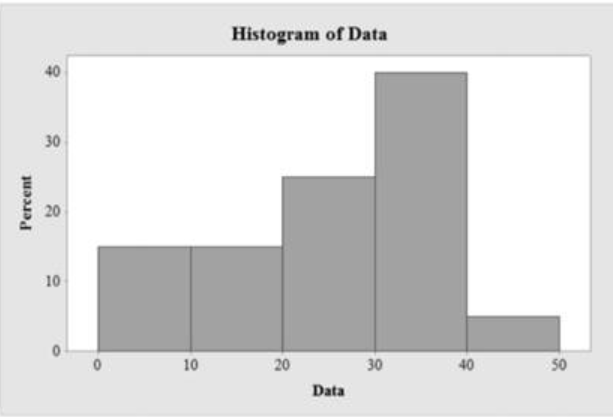

The output of MINITAB is displayed below.
