In $2010$, cars, trucks, and buses constituted $88.3\%,9.3\%$, and $2.4\%$ of vehicle exports, respectively.

MINITAB is used to get the frequency.

The following is how you get the frequency.

Tally Individual Variables > Stat > Tables

Select TYPE from the Variables menu.

Select Counts in Display.

Click OK

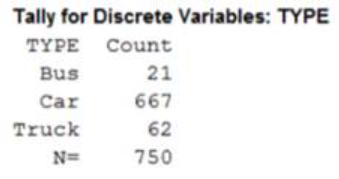

Below is a screenshot of the MINITAB output.

In $2010$, cars, trucks, and buses constituted $88.3\%,9.3\%$, and $2.4\%$ of vehicle exports, respectively.

The relative frequency is expressed as follows:

$\text{RelativeFrequency}=\frac{\text{Frequency}}{\text{NumberofObservations}}$

The frequency distribution is presented in the table below.

$\begin{array}{|ccs|}\hline \text{Type}& \text{Frequency}& \text{Relative Frequency}\\ \text{Bus}& 21& \frac{21}{750}=0.028\\ \text{Car}& 667& \frac{667}{750}=0.8893\\ \text{Truck}& 62& \frac{62}{750}=0.0827\\ \text{Total}& 750& 1\\ \hline\end{array}$

In $2010$, cars, trucks, and buses constituted $88.3\%,9.3\%$, and $2.4\%$ of vehicle exports, respectively.

MINITAB was used to make the pie graph.

The fraction for each class in a pie chart is calculated by multiplying ${360}^o$by the relative frequencies for that class.

To make a pie chart, follow these steps:

- Select Pie Chart from the Graph menu.

- Choose unique data counts in the chart.

- Select an option.

- Go to the tab Labels.

- Select the Labels for Slides tab.

- Under Label pie slices with, look for Category name and Percent.

- Click OK

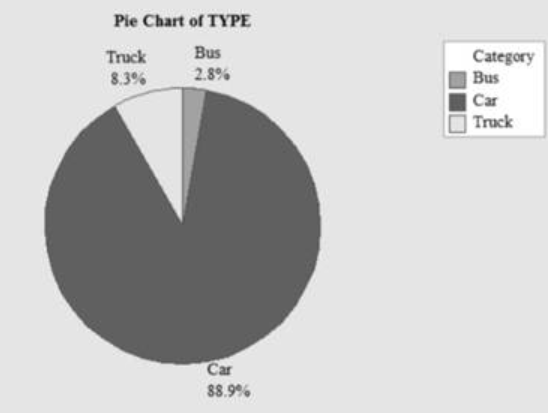

The figure following shows the pie chart for the supplied data set.

In $2010$, cars, trucks, and buses constituted $88.3\%,9.3\%$, and $2.4\%$ of vehicle exports, respectively.

MINITAB has been used to create the bar chart.

The steps to making a bar chart are as follows:

• Navigate to Graph > Bar Chart.
• Select Counts of unique values from the Bars to represent the menu. Click OK after selecting Simple.
• Add one column of CLASS LIMITS to Categorical variables.
• Select your chart options
• Click the Show $Y$as Percent option.
• Click OK

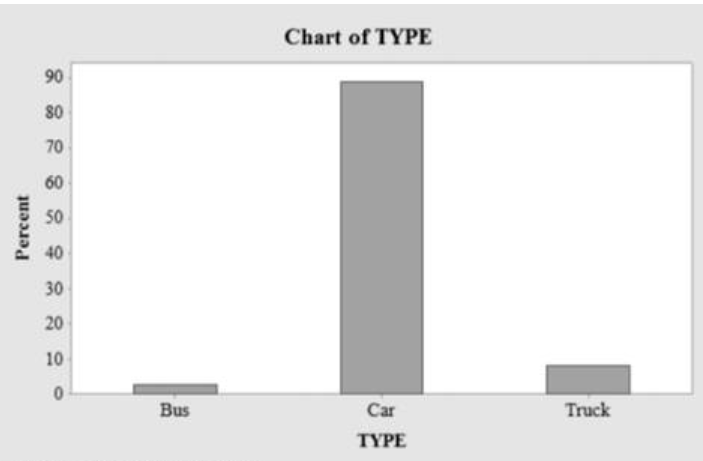

The figure shows the bar chart for the supplied data set.
