Given in the question that, Drug dealer motivation is traditionally attributed to greed or social pressures. Researchers R. Highland and D. Dabney explore possible personality characteristics as a motivation in the article "Using Adlerian Theory to Shed Light on Drug Dealer Motivations" (Applied Psychology in Criminal Justice, Vol. 5, Issue 2, pp. 109-138). The following table lists the types of drug sold from a sample of convicted drug dealers.

We need to obtain a relative -frequency Distribution.

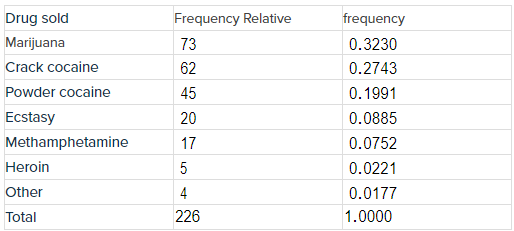

The relative frequency table is:

The general formula for the relative frequency is,

$\text{Relative Frequency}=\frac{\text{Frequency}}{\text{Total frequency}}$

Substituting$"73"$as the class level drug sold frequency and $"226"$as the total number of class level drug sold frequency in relative frequency.

Relative Frequency of sold drug marijuana $=\frac{73}{226}$

$=0.3230$

Similarly, the relative frequency for the remaining faculty rankings are as follows:

Given in the question that, Drug dealer motivation is traditionally attributed to greed or social pressures. Researchers R. Highland and D. Dabney explore possible personality characteristics as a motivation in the article "Using Adlerian Theory to Shed Light on Drug Dealer Motivations" (Applied Psychology in Criminal Justice, Vol. 5, Issue 2 , pp. 109-138). The following table lists the types of drug sold from a sample of convicted drug dealers.

We need to draw a pie chart.

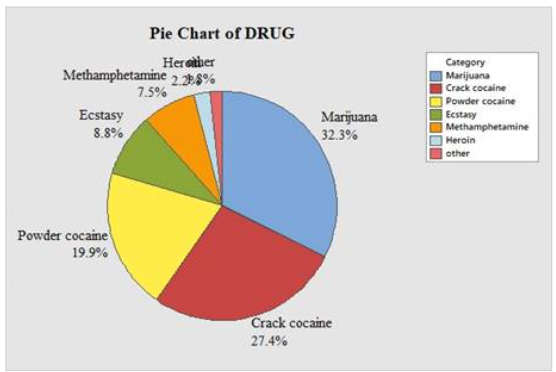

Output using MINITAB software is given below:

When the relative frequency is multiplied by the degree$360$, the pie slice for each type for the robbery is obtained.

Determining the pie chart slice size for sold drug marijuana:

pie slice for sold drug marijuana $=0.3230×360$

$=116.28$

Similarly, the pie slices for the remaining types of sold drugs are obtained below:

Proportion is calculated by the product of relative frequency of each class with $100.$

Proportion for sold drug marijuana $=$relative frequency $×100$

$=0.3230×100$
$=32.3$

Similarly, the proportion for the remaining sold drugs are obtained below:

Software procedure:

Step by step procedure to draw the pie chart using MINITAB software.

• Choose Graph > Pie Chart.
• Enter the columns of drug sold in Categorical variables.
• In Summary variables, enter the corresponding column.
• Click OK.

Given in the question that, Drug dealer motivation is traditionally attributed to greed or social pressures. Researchers R. Highland and D. Dabney explore possible personality characteristics as a motivation in the article "Using Adlerian Theory to Shed Light on Drug Dealer Motivations" (Applied Psychology in Criminal Justice, Vol. 5, Issue 2, pp. 109-138). The following table lists the types of drug sold from a sample of convicted drug dealers.

We need to construct a bar chart.

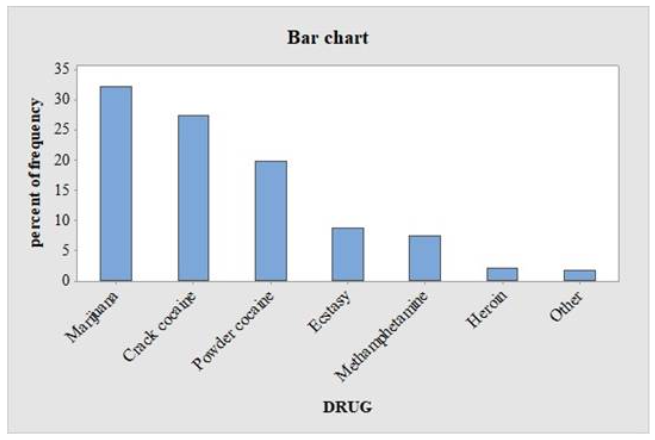

• Output using MINITAB software is given below:

Software procedure:

Step by step procedure to draw the bar chart using MINITAB software.

• From Bars represent, choose Values from a table.
• Under One column of values, choose Simple. Click OK.
• Choose Simple, and then click OK.
• In Graph variables, enter the column of drug sold.
• In Categorical variables, enter the column of percent.
• Click OK.

Thus, the bar chart is constructed for the location of the cities.
