Chapter 2: Q. 2.30 (page 50)

For each data sets in Exercises 2.26-2.31,

a. determine a frequency distribution.

b. obtain a relative-frequency distribution.

c. draw a pie chart.

d. Construct a bar chart.

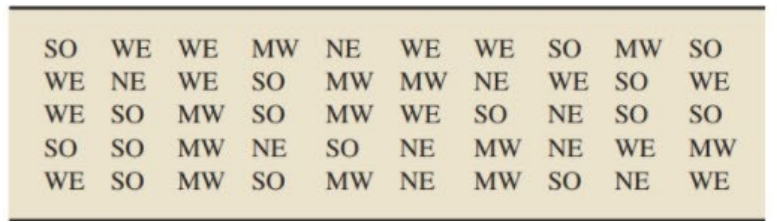

U.S. Regions. The U.S. Census Bureau divides the states in the United States into four regions: Northeast (NE), Midwest (MW), South (SO), and West (WE). The following table gives the region of each of the 50 states.

Short Answer

Expert verified

Part a. The frequency distribution is given as

RegionTallyFrequency
NE|||||||||
9
MW||||||||||||
12
SO||||||||||||||||
16
WE|||||||||||||
13

Part b. The relative frequency distribution is given as

RegionFrequencyRelative Frequency
NE9950=0.18
MW121250=0.24
SO161650=0.32
WE131350=0.26
Total501

Part c. The pie chart is given as

Part d. The bar chart is given as

Step by step solution

01

Part (a) Step 1. Given Information

We are given a data that divides the 50 states of the United States into four regions.

02

Part (a) Step 2. Frequency Distribution

For the study, there are four regions Northeast (NE), Midwest (MW), South (SO), and West (WE). The frequency distribution can be shown as

RegionTallyFrequency
NE|||||||||9
MW||||||||||||
12
SO||||||||||||||||
16
WE|||||||||||||
13
03

Part (b) Step 2. Relative Frequency Distribution

The relative frequency distribution for the given data is given as

RegionFrequencyRelative Frequency
NE9950=0.18
MW121250=0.24
SO161650=0.32
WE131350=0.26
Total501
04

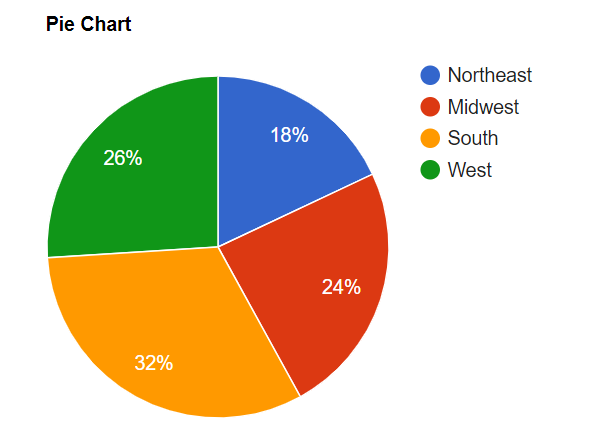

Part (c) Step 4. Pie chart

The pie chart for the data is shown as

05

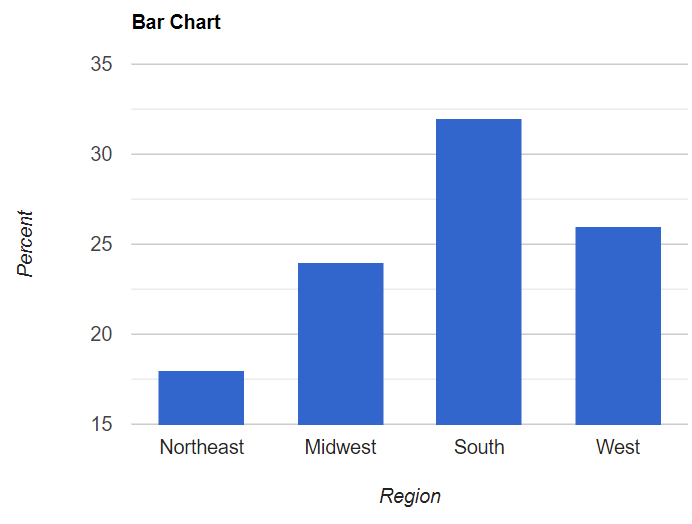

Part (d) Step 1. Bar Chart

The bar chart for the data is shown as

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

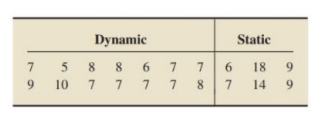

Acute Postoperative Days. Several neurosurgeons wanted to determine whether a dynamic system (Z-plate) reduced the number of acute postoperative days in the hospital relative to a static system (ALPS plate). R. Jacobowitz, Ph.D., an Arizona State University professor, along with G. Vishteh, M.D., and other neurosurgeons obtained the following data on the number of acute postoperative days in the hospital using the dynamic and static systems.
