Chapter 2: Q. 2.119 (page 75)

Clocking the Cheetah. Refer to the speed data given in Exercise $2.89$ .
a. Construct a table similar to Table $2.14$ for the data, based on the classes specified in Exercise 2.89. Interpret your results.
b. Construct an ogive for the data.

Short Answer

Expert verified

(a). The construct a table similar to table for the data is shown in figure.

Class	Frequency	Relative frequency
$52 - < 54$	$2$	$0.057$
$54 - < 56$	$5$	$0.143$
$56 - < 58$	$6$	$0.171$
$58 - < 60$	$8$	$0.229$
$60 - < 62$	$7$	$0.2$
$62 - < 64$	$3$	$0.086$
$64 - < 66$	$2$	$0.057$
$66 - < 68$	$1$	$0.029$
$68 - < 70$	$0$	$0$

$70 - < 72$	$0$	$0$
$72 - < 74$	$0$	$0$
$74 - < 76$	$1$	$0.029$
Total	$35$	$1$

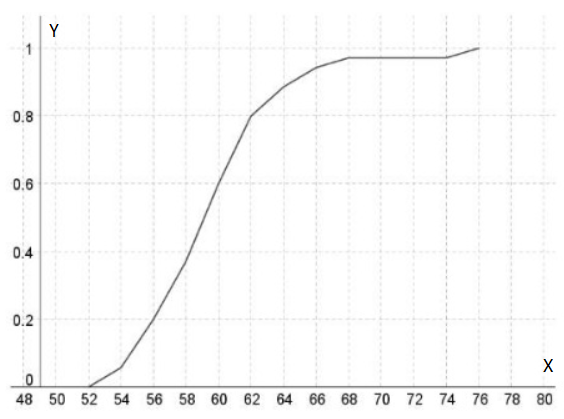

(b) The construct an ogive for the data graph is shown in figure.

Step by step solution

Part (a) Step 1: Given Information

We have to refer the speed data given in exercise 2.89. Then construct a table similar to table $2.14$ for the data.

Part (a) Step 2: Explanation

Based on the outcome of the previous exercise,

Class	Frequency	Relative frequency
$52 - < 54$	$2$	$0.057$
$54 - < 56$	$5$	$0.143$
$56 - < 58$	$6$	$0.171$
$58 - < 60$	$8$	$0.229$
$60 - < 62$	$7$	$0.2$
$62 - < 64$	$3$	$0.086$
$64 - < 66$	$2$	$0.057$
$66 - < 68$	$1$	$0.029$
$68 - < 70$	$0$	$0$

$70 - < 72$	$0$	$0$
$72 - < 74$	$0$	$0$
$74 - < 76$	$1$	$0.029$
Total	$35$	$1$

Part (b) Step 1: Given Information

Given in the question to refer exercise 2.89. We have to construct an ogive for the data.

Part (b) Step 2: Explanation

The cumulative relative frequency is calculated by dividing the overall frequency of 35 by the cumulative frequency. Then

Lower class limit	Cumulative frequency	Cumulative relative frequency
$52$	$0$	$0$
$54$	$2$	$0.0571$
$56$	$7$	$0.2$
$58$	$13$	$0.3714$
$60$	$21$	$0.6$
$62$	$28$	$0.8$
$64$	$31$	$0.8857$
$66$	$33$	$0.9429$
$68$	$34$	$0.9714$

$70$	$34$	$0.9714$
$72$	$34$	$0.9714$
$74$	$34$	$0.9714$
$76$	$35$	$1$

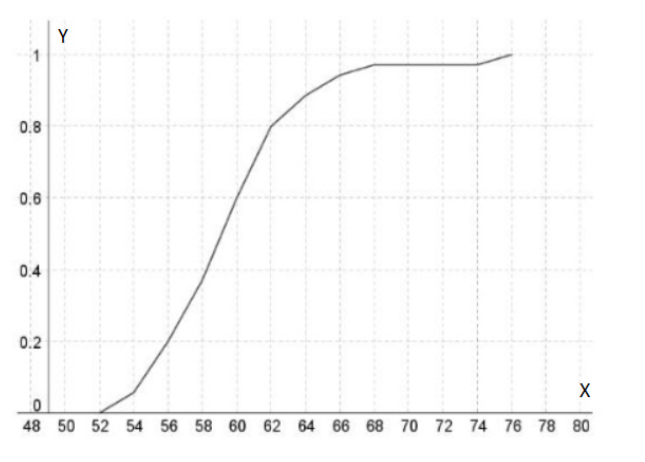

Part (b) Step 3: Explanation

As indicated below, add the above points to the graphs and connect them with a straight line.
