Data are given on the number of defective altimeters in 12 samples.

The size of each sample is 100.

The np chart is an attribute control chart that depicts the number of defects in the individual samples as compared to the p chart, which shows the proportion of defects in each sample.

The following data is utilized to construct the np chart, which shows the number of defective altimeters in each sample:

Let\(n\bar p\)be the estimated number of defectivealtimetersin all the samples.

It is computed as follows:

\(\begin{array}{c}n\bar p = n \times \left( {\frac{{{\rm{Total}}\;{\rm{number}}\;{\rm{of}}\;{\rm{defectives}}\;{\rm{from}}\;{\rm{all}}\;{\rm{samples}}\;{\rm{combined}}}}{{{\rm{Total}}\;{\rm{number}}\;{\rm{of}}\;{\rm{samples}}}}} \right)\\ = \left( {100} \right) \times \left( {\frac{{2 + 0 + 1 + ..... + 7}}{{12\left( {100} \right)}}} \right)\\ = \left( {100} \right) \times \left( {\frac{{42}}{{1200}}} \right)\\ = \left( {100} \right) \times \left( {0.035} \right)\end{array}\)

\( = 3.5\)

The value of\(\bar q\)is computed as shown:

\(\begin{array}{c}\bar q = 1 - \bar p\\ = 1 - 0.035\\ = 0.965\end{array}\)

The value ofthe central line is calculated below:

\(\begin{array}{c}CL = n\bar p\\ = 3.5\end{array}\)

The lower control limit (LCL) is computed below:

\(\begin{array}{c}LCL = n\bar p - 3\sqrt {n\bar p\bar q} \\ = 3.5 - 3\sqrt {\left( {100} \right)\left( {0.035} \right)\left( {0.965} \right)} \\ = - 2.01339\\ \approx 0\end{array}\)

The upper control limit (UCL) is computed below:

\(\begin{array}{c}UCL = n\bar p + 3\sqrt {n\bar p\bar q} \\ = 3.5 + 3\sqrt {\left( {100} \right)\left( {0.035} \right)\left( {0.965} \right)} \\ = 9.01\end{array}\)

The following table shows the number of defective altimeters corresponding to the sample number:

Follow the given steps to construct the p chart:

• Mark the values 1, 2, 3 ...,12 on the horizontal axis and label it 鈥淪ample.鈥�
• Mark the values 0, 2, 4 ...,14 on the vertical axis and label it 鈥淪ample Count.鈥�
• Plot a horizontal line parallel to the horizontal axis corresponding to the value 鈥�3.5鈥� on the vertical axis and label the line (on the left side) 鈥淺(n\bar p\)= 3.5.鈥�
• Plot a horizontal line parallel to the horizontal axis corresponding to the value 鈥�9.01鈥� on the vertical axis and label the line (on the left side) 鈥淯CL= 9.01.鈥�
• Plot a horizontal line parallel to the horizontal axis corresponding to the value 鈥�0鈥� on the vertical axis and label the line (on the left side) 鈥淟CL= 0.鈥�
• Mark the 12 samplepoints on the graph and join the dots using straight lines.

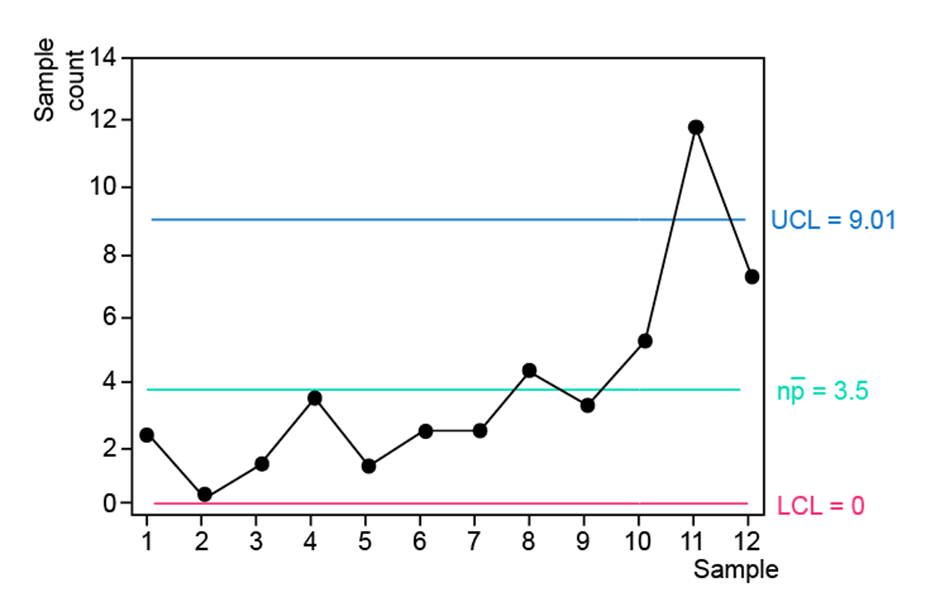

The following np chart is obtained:

The following characteristics can be observed from the plotted chart:

• There is at least one point beyond the upper control limit.
• There appears to be an upward trend in the number of defects.

Since the above criteria point towards the violation of the stability of the given process, the process is not under statistical control.

Referring to Example 1, the centerline and control limits (LCL and UCL) are given as follows:

\(\begin{array}{c}CL = 0.035\\UCL = 0.090\\LCL = - 0.020\\ \approx 0\end{array}\)

The p chart and the np chart plotted for the given data are approximately identical and have the same structure. The only difference in the two charts is in the values marked on the vertical scale.
