Variation and Prediction Intervals. In Exercises 17鈥20, find the (a) explained variation, (b) unexplained variation, and (c) indicated prediction interval. In each case, there is sufficient evidence to support a claim of a linear correlation, so it is reasonable to use the regression equation when making predictions.

Altitude and Temperature Listed below are altitudes (thousands of feet) and outside air temperatures (掳F) recorded by the author during Delta Flight 1053 from New Orleans to Atlanta. For the prediction interval, use a 95% confidence level with the altitude of 6327 ft (or 6.327 thousand feet).

Altitude (thousands of feet)

3

10

14

22

28

31

33

Temperature (掳F)

57

37

24

-5

-30

-41

-54

Short Answer

Expert verified

a)Explained variation:10626.59

(b) Unexplained variation:68.83577

(c) 95%prediction interval: (38.0,60.4)

Step by step solution

01

Given information

Data are given on two variables 鈥淎ltitude (thousands of feet)鈥 and 鈥淭emperature (in degrees Fahrenheit).鈥

02

Obtain the regression equation

Let x denote the variable 鈥淎ltitude.鈥

Let y denote the variable 鈥淭emperature.鈥

The regression equation of y on x has the following notation:

\(\hat y = {b_0} + {b_1}x\),

where

\({b_0}\)is the intercept term and

\({b_1}\)is the slope coefficient.

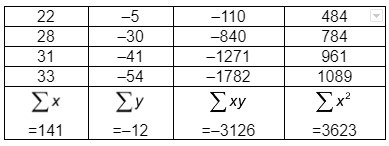

The following calculations are done to compute the intercept and the slope coefficient:

The y-intercept is computed below:

\(\begin{array}{c}{b_0} = \frac{{\left( {\sum y } \right)\left( {\sum {{x^2}} } \right) - \left( {\sum x } \right)\left( {\sum {xy} } \right)}}{{n\left( {\sum {{x^2}} } \right) - {{\left( {\sum x } \right)}^2}}}\\ = \frac{{\left( { - 12} \right)\left( {3623} \right) - \left( {141} \right)\left( { - 3126} \right)}}{{7\left( {3623} \right) - {{\left( {141} \right)}^2}}}\\ = 72.49817518\end{array}\)

The slope coefficient is computed below:

\(\begin{array}{c}{b_1} = \frac{{n\left( {\sum {xy} } \right) - \left( {\sum x } \right)\left( {\sum y } \right)}}{{n\left( {\sum {{x^2}} } \right) - {{\left( {\sum x } \right)}^2}}}\\ = \frac{{\left( 7 \right)\left( { - 3126} \right) - \left( {141} \right)\left( { - 12} \right)}}{{7\left( {3623} \right) - {{\left( {141} \right)}^2}}}\\ = - 3.68430656\end{array}\)

Thus, the regression equation becomes

\(\hat y = 72.49817518 - 3.68430656x\).

03

Calculate the explained and unexplained variations

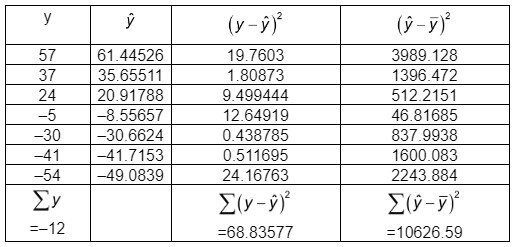

The following table shows the predicted values (upon substituting the values of x in the regression equation):

The mean value of observed y is computed below:

\(\begin{array}{c}\bar y = \frac{{\sum y }}{n}\\ = \frac{{ - 12}}{7}\\ = - 1.71429\end{array}\)

Some important calculations are done below:

The explained variation is \(\sum {{{\left( {\hat y - \bar y} \right)}^2}} = 10626.59\).

Thus, the explained variation is equal to 10626.59.

The unexplained variation is \(\sum {{{\left( {y - \hat y} \right)}^2}} = 68.83577\).

Thus, the unexplained variation is equal to 68.83577.

04

Predicted value at \(\left( {{x_0}} \right)\)

Substitute\({x_0} = 6.327\)in the regression equation to get the predicted value.

\(\begin{array}{c}\hat y = 72.49817518 - 3.68430656x\\ = 72.49817518 - 3.68430656\left( {6.327} \right)\\ = 49.18757\\ \approx 49\end{array}\)

05

Formula of prediction interval

The prediction interval is obtained using the formula

\(\begin{array}{c}PI = \hat y \pm E\\ = \hat y \pm {t_{\frac{\alpha }{2}}}{s_e}\sqrt {1 + \frac{1}{n} + \frac{{n{{\left( {{x_0} - \bar x} \right)}^2}}}{{n\left( {\sum {{x^2}} } \right) - {{\left( {\sum x } \right)}^2}}}} \end{array}\).

06

Degrees of freedom and critical value

The following formula is used to compute the level of significance.

\(\begin{array}{c}{\rm{Confidence}}\;{\rm{Leve}}l = 95\% \\100\left( {1 - \alpha } \right) = 95\\1 - \alpha = 0.95\\\alpha = 0.05\end{array}\)

The degrees of freedom for computing the t-multiplier are shownbelow:

\(\begin{array}{c}df = n - 2\\ = 7 - 2\\ = 5\end{array}\)

The two-tailed value of the t-multiplier for the level of significance (0.05) and degrees of freedom (5) is 2.5706.

07

Standard error of the estimate

The standard error of the estimate is computed below:

\(\begin{array}{c}{s_e} = \sqrt {\frac{{\sum {{{\left( {y - \hat y} \right)}^2}} }}{{n - 2}}} \\ = \sqrt {\frac{{68.83577}}{{7 - 2}}} \\ = 3.710411\end{array}\)

08

Value of \(\bar x\)

The value of \(\bar x\)is computed as follows:

\(\begin{array}{c}\bar x = \frac{{\sum x }}{n}\\ = \frac{{141}}{7}\\ = 20.14286\end{array}\)

09

Calculate the prediction interval

Substitute the values obtained above to calculate the margin of error (E).

\(\begin{array}{c}E = {t_{\frac{\alpha }{2}}}{s_e}\sqrt {1 + \frac{1}{n} + \frac{{n{{\left( {{x_0} - \bar x} \right)}^2}}}{{n\left( {\sum {{x^2}} } \right) - {{\left( {\sum x } \right)}^2}}}} \\ = \left( {2.5706} \right)\left( {3.710411} \right)\sqrt {1 + \frac{1}{7} + \frac{{7{{\left( {6.327 - 20.14286} \right)}^2}}}{{7\left( {3623} \right) - \left( {19881} \right)}}} \\ = 11.23167664\end{array}\)

Thus, the prediction interval (PI) becomes as shown:

\(\begin{array}{c}PI = \left( {\hat y - E,\hat y + E} \right)\\ = \left( {49.18757 - 11.23167664,49.18757 + 11.23167664} \right)\\ = (37.9559,60.4192)\\ \approx \left( {38.0,60.4} \right)\end{array}\)

Therefore, the 95% prediction interval for the temperature (in degrees Fahrenheit) for the given altitude of 6.327 is (38.0, 60.4).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

let the predictor variable x be the first variable given. Use the given data to find the regression equation and the best predicted value of the response variable. Be sure to follow the prediction procedure summarized in Figure 10-5 on page 493. Use a 0.05 significance level.

For 50 randomly selected speed dates, attractiveness ratings by males of their

female date partners (x) are recorded along with the attractiveness ratings by females of their male date partners (y); the ratings are from Data Set 18 鈥淪peed Dating鈥 in Appendix B. The 50 paired ratings yield\(\bar x = 6.5\),\(\bar y = 5.9\), r= -0.277, P-value = 0.051, and\(\hat y = 8.18 - 0.345x\). Find the best predicted value of\(\hat y\)(attractiveness rating by female of male) for a date in which the attractiveness rating by the male of the female is x= 8.

The following exercises are based on the following sample data consisting of numbers of enrolled students (in thousands) and numbers of burglaries for randomly selected large colleges in a recent year (based on data from the New York Times)

Which of the following change if the two variables of enrollment and burglaries are switched: the value of r= 0.499, the P-value of 0.393, the critical values of\( \pm \)0.878?

The following exercises are based on the following sample data consisting of numbers of enrolled students (in thousands) and numbers of burglaries for randomly selected large colleges in a recent year (based on data from the New York Times).

Exercise 1 stated that ris found to be 0.499. Does that value change if the actual enrollment values of 53,000, 28,000, 27,000, 36,000, and 42,000 are used instead of 53, 28, 27, 36, and 42?

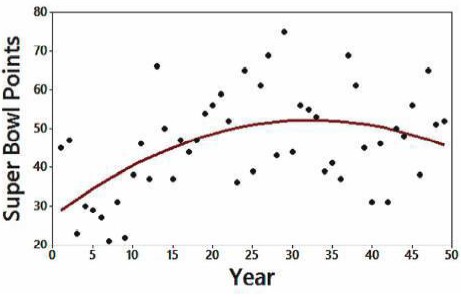

Interpreting a Graph The accompanying graph plots the numbers of points scored in each Super Bowl to the last Super Bowl at the time of this writing. The graph of the quadratic equation that best fits the data is also shown in red. What feature of the graph justifies the value of\({R^2}\)= 0.255 for the quadratic model?
