Question : The formal description of a DFA M is q1,q2,q3,q4,q5,u,d,未,q3,q3, where 未 is given by the following table. Draw the state diagram of this machine.

Short Answer

Expert verified

Answer:

The state diagram is

Step by step solution

01

Explain the given DFA

The specified DFA M is defined as follows:

M=(Q,鈭�,未,q3,F)Q={q1,q2,q3,q4,q5}a={u,d}未=Transition

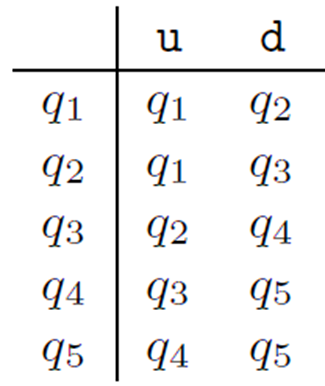

The transition of the given DFA is given as follows:

02

Step 2: Draw the state diagram of the given machine

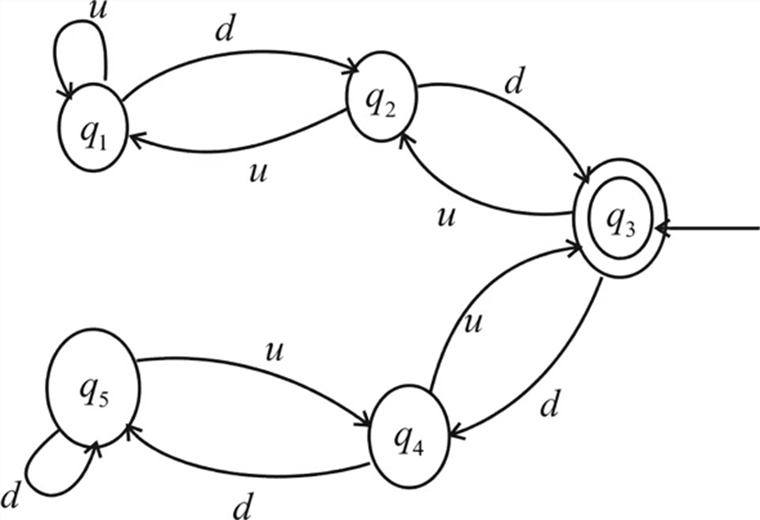

Assume that the initial state and the final state is q3, and represent it by double circle. The transitions are made from one state to another based on the input symbol and the data from the table given. The state diagram for the DFA M is as follows:

Therefore, the state diagram for the machine M has been obtained.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

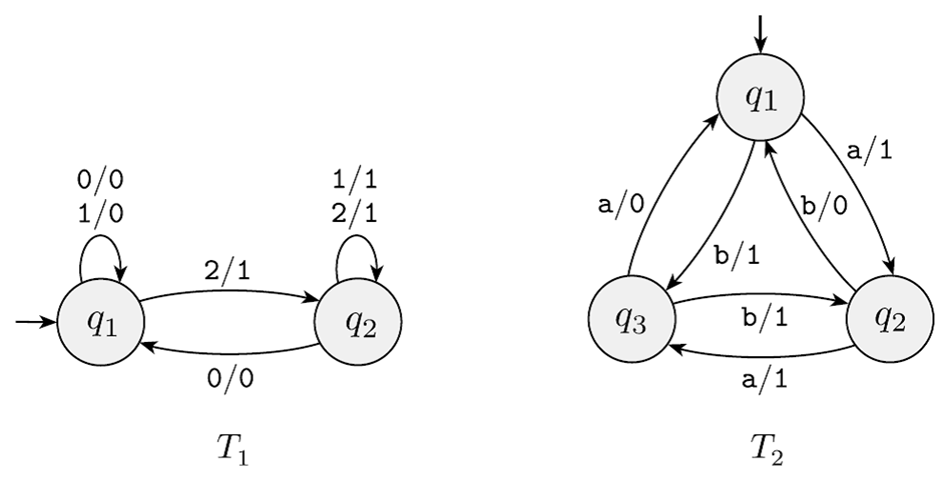

A finite state transducer (FST) is a type of deterministic finite automaton whose output is a string and not just accept or reject. The following are state diagrams of finite state transducers T1andT2.
