Chapter 21: Q21.150CP (page 979)

Use Appendix D to create an activity series of Mn, Fe, Ag, Sn, Cr, Cu, Ba, Al, Na, Hg, Ni, Li, Au, Zn, and Pb. Rank these metals in order of decreasing reducing strength, and divide them into three groups: those that displace H2 from water, those that displaceH2 from acid, and those that cannot displaceH2 .

Short Answer

Expert verified

Li, Ba, Na, Al, Mn, Zn, Cr, Fe, Ni, Sn, Pb, Cu, Ag, Hg, Au are the elements in decreasing order.

Mn, Al, Na, Ba, and Li may all remove hydrogen from water.

Mn, Al, Na, Ba, Li, Zn, Cr, Fe, Ni, Sn, and Pb are among the metals that can be displaced by acid.

Cu, Hg, Ag, and Au are unable to displace hydrogen.

Step by step solution

01

Chemical reaction

Chemical synthesis or, alternatively, chemical breakdown into two or more separate chemicals occurs when one component interacts with another to generate a new material. These processes are known as chemical reactions, and they are generally irreversible until followed by other chemical reactions.

02

Rank the metal

The standard reduction potentials are listed in Appendix D:

Mn鈥鈥鈥鈥鈥鈥-1.18Fe鈥鈥鈥鈥鈥鈥鈥-0.44Ag鈥鈥鈥鈥鈥鈥鈥鈥鈥鈥鈥0.80Sn鈥鈥鈥鈥鈥鈥鈥-0.14Cr鈥鈥鈥鈥鈥鈥鈥-0.74Cu鈥鈥鈥鈥鈥鈥鈥鈥鈥鈥0.34Ba鈥鈥鈥鈥鈥鈥-2.90Al鈥鈥鈥鈥鈥鈥鈥-1.66Na鈥鈥鈥鈥鈥-2.71Hg鈥鈥鈥鈥鈥鈥鈥鈥鈥0.85Ni鈥鈥鈥鈥鈥鈥鈥-0.25Li鈥鈥鈥鈥鈥鈥鈥鈥-3.05Au鈥鈥鈥鈥鈥鈥鈥鈥鈥1.50Zn鈥鈥鈥鈥鈥鈥-0.76Pb鈥鈥鈥鈥鈥鈥鈥-0.13

As, the ability to be a reducing agent increases with the negative standard potential, the arrangement in decreasing strength will be: Li, Ba, Na, Al, Mn, Zn, Cr, Fe, Ni, Sn, Pb, Cu, Ag, Hg, Au.

In order to determine which metals may displace hydrogen in water, they must have a lower reduction potential than water oxidation,.

Mn, Al, Na, Ba, and Li have anvalue of less thanV.

Metals havingless than the voltage of the normal hydrogen potential, which is equal to, can displace hydrogen from acid.

Mn, Al, Na, Ba, Li, Zn, Cr, Fe, Ni, Sn, and Pb are the metals in question.

Cu, Ag, Hg, and Au are examples of metals with reduction potentials larger thanthat cannot displace hydrogen.

Therefore, we get:

Li, Ba, Na, Al, Mn, Zn, Cr, Fe, Ni, Sn, Pb, Cu, Ag, Hg, Au in decreasing order.

Mn, Al, Na, Ba, and Li all have the ability to remove hydrogen from water.

Mn, Al, Na, Ba, Li, Zn, Cr, Fe, Ni, Sn, Pb, Fe, Ni, Sn, Pb, Fe, Ni, Sn, Pb, Fe, Ni,

Cu, Hg, Ag, and Au cannot displace hydrogen.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

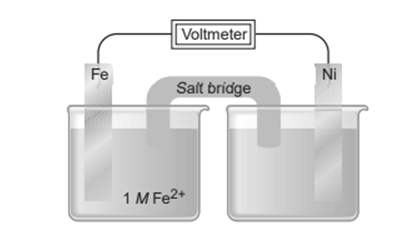

Consider the following voltaic cell:
