A voltaic cell using Cu/ Cu2 +and Sn/ Sn2 +half-cells is set up at standard conditions, and each compartment has a volume of345mL. The cell delivers 0.17 A for 48.0h. (a) How many grams of Cu(s) are deposited? (b) What is the [ Cu2 +] remaining?

Short Answer

Expert verified
  1. The amount of Cu(s) are deposited as: 9.67 g Cu
  2. The remaining [ Cu2 +] are obtained as: [Cu2 +]=0.51 M

Step by step solution

01

Define chemical reaction

Chemical synthesis or, alternatively, chemical breakdown into two or more separate chemicals occurs when one component interacts with another to generate new material. These processes are known as chemical reactions, and they are generally irreversible until followed by other chemical reactions.

02

How many grams of Cu(s) are deposited?

a.Multiply the current by the given time to get the charge.

Charge =0.17 Cs×48 hr×60 min1 hr×60 sec1 min= 29,376 C

Divide the charge by Faraday's constant to get the moles of electrons reacting. Convert the electron moles to Cu reactive moles. In the reduction ofCu2 +, two electrons are involved.

29,376 C×1 mole-96,500 C×1 mol Cu2 mole-= 0.152 mol Cu

Multiply the moles of Cu by their molar mass to get mass.

0.152 mol Cu×63.55 g1 mol Cu= 9.67 g Cu

Therefore, the value is: 9.67 g Cu

03

Step 3: What is the [ Cu2 + ] remaining?

The moles of copper ion in the solution are:

0.345 L×1 mol1 L= 0.345 mol Cu2 +

Now, subtracting the moles of copper being deposited is:

0.345 mol Cu2 +- 0.152 mol Cu2 += 0.193 mol Cu2 +

Then, evaluating the new molarity of the solution as:

M =0.193 mol Cu2 +0.375 L= 0.51 M

Therefore, the value is: [Cu2 +]=0.51 M

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

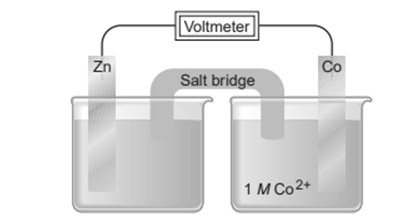

Consider the following voltaic cell

(a) In which direction do electrons flow in the external circuit?

(b) In which half-cell does oxidation occur?

(c) In which half-cell do electrons enter the cell?

(d) At which electrode are electrons consumed?

(e) Which electrode is negatively charged?

(f) Which electrode decreases in mass during cell operation?

(g) Suggest a solution for the cathode electrolyte.

(h) Suggest a pair of ions for the salt bridge.

(i) For which electrode could you use an inactive material?

(j) In which direction do anions within the salt bridge move to maintain charge neutrality?

(k) Write balanced half-reactions and an overall cell reaction.

What purpose does the salt bridge serve in a voltaic cell, and how does it accomplish this purpose?


Use the following half-reactions to write three spontaneous reactions, calculate E°cell for each reaction, and rank the strengths of the oxidizing and reducing agents

(1)I2(s)+ 2e-n2I-(aq)E0=0.53V(2)S2O82 -(aq) + 2e-n2SO42 -(aq)E0=2.01V(3)Cr2O72 -(aq) + 14H+(aq) + 6e-n2Cr3 +(aq) + 7H2O(l)E0=1.33V

(a) How many minutes does it take to form 10.0 Lof O2measured ata99.8 kPaand 28oCfrom water if a current of 1.3 A passes through the electrolytic cell?

(b) What mass of H2forms?

Many common electrical devices require the use of more than one battery.

(a) How many alkaline batteries must be placed in series to light a flash light with a 6.0-V bulb?

(b) What is the voltage requirement of a camera that uses six silver batteries?

(c) How many volts can a car battery deliver if two of its anode/cathode cells are shorted?
