Magazine Chapter 4: Q5OQ (page 647)
The following production flow shows Parts O, Q, and T; Subassembly U; and final assembly for Product V.
M to N to O
P to Q
R to S to T
O and Q to U
U and T to V
N involves a bottleneck operation, and S involves a capacity-constrained resource. Draw the process flow.
Short Answer
The final assembly of end item V is achieved in the above process flow chart with the help of subassembly U, and component T. Parts O and Q are used to create subassembly U.
Step by step solution
Introduction
A bottleneck occurs when a machine is inefficient and has a large backlog. One example is a lack of smelter and refinery supplies, which causes bottlenecks upstream.
Analyse

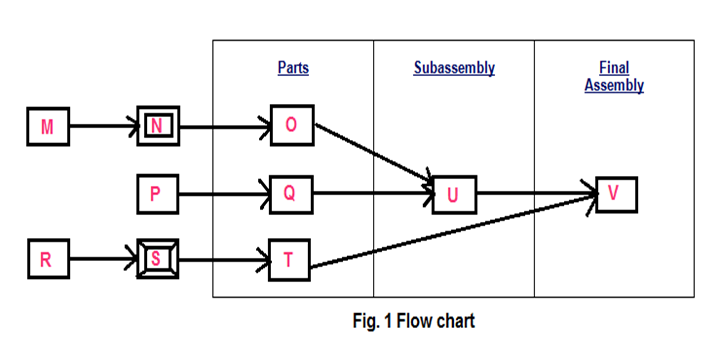

The following is the process flow chart for the assembly of final product V:
Determine the notation
The list is based are used in the flow chart:
Bottleneck operation =
Capacity constraints resource =
The final assembly of end item V is achieved in the above process flow chart with the help of subassembly U, and component T. Parts O and Q are used to create subassembly U.
